DESCRIPTION
Duhr Round has a modern design with up and down light. With adjustable flaps you can easily change the beam angle.
Product info
Mounting
Documents
Family data sheet
All files (.ZIP)
Variant-specific documents are available under details in the overview below.
SPECIFICATIONS
VARIANT SELECTION
CCT [K]
CRI [>]
Color
Lens Difuser
Length [mm]
Width [mm]
Ingress Protection
Lumen LED (Tc=25)
Art. No.
CCT [K]CRI [>]ColorLens DifuserLength [mm]Width [mm]Beam Angle°Ingress ProtectionLumen LED (Tc=25)
Energy label
Duhr Round
Art. No. 3545-26
CCT [K]:
2700
CRI [>]:
90
Color:
Black/Gold
Lens Difuser:
None
Length [mm]:
138.0
Width [mm]:
118.0
Ingress Protection:
IP54
Lumen LED (Tc=25):
2x400
3545-26
2700
90
Black/Gold
None
138.0
118.0
IP54
2x400
Item status: Stock item

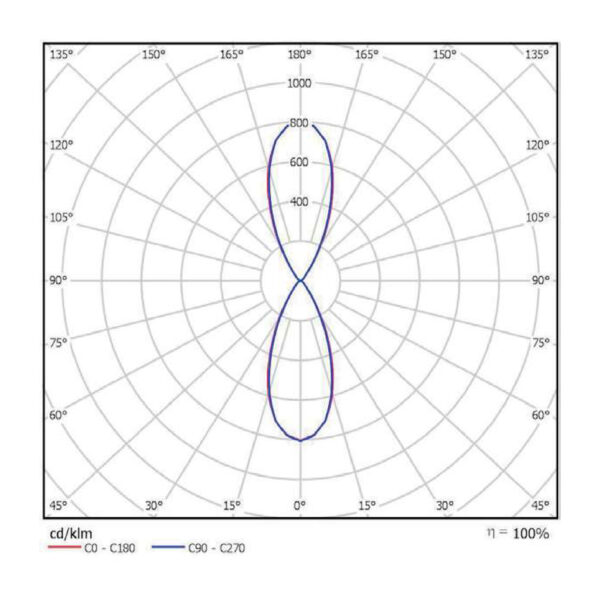

DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Duhr Round has a modern design with up and down light. With adjustable flaps you can easily change the beam angle.
Product
Ingress Protection
IP54
Color
Black/Gold
Length [mm]
138
Width [mm]
118
Height [mm]
100
Weight [kg]
0.8
LIGHT TECHNICAL
Lumen LED (tc=25)
2x400
CCT (Color Temperature) [K]
2700
CRI/Ra
90
Color Code
927
Lightsource type
LED (built in)
Lens (Diffuser)
None
ELECTRICAL DATA
Dimming
Phase-Cut
System Voltage [V]
230V 50Hz
Protection Class
1
Socket / Cap-Base
N/A
Max. power, lightsource [W]
na
System Power [W]
2x4,6
Forward Current LED [mA]
500
MOUNTING / CONNECTION
Connection
Terminal
Cut-out [mm]
x
Mounting
Surface, Wall
Duhr Round
Art. No. 3545-3
CCT [K]:
2700
CRI [>]:
90
Color:
White
Lens Difuser:
None
Length [mm]:
138.0
Width [mm]:
118.0
Ingress Protection:
IP54
Lumen LED (Tc=25):
2x400
3545-3
2700
90
White
None
138.0
118.0
IP54
2x400
Item status: Stock item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Duhr Round has a modern design with up and down light. With adjustable flaps you can easily change the beam angle.
Product
Ingress Protection
IP54
Color
White
Length [mm]
138
Width [mm]
118
Height [mm]
100
Weight [kg]
0.8
LIGHT TECHNICAL
Lumen LED (tc=25)
2x400
CCT (Color Temperature) [K]
2700
CRI/Ra
90
Color Code
927
Lightsource type
LED (built in)
Lens (Diffuser)
None
ELECTRICAL DATA
Dimming
Phase-Cut
System Voltage [V]
230V 50Hz
Protection Class
1
Socket / Cap-Base
N/A
System Power [W]
2x4,6
Forward Current LED [mA]
500
MOUNTING / CONNECTION
Connection
Terminal
Mounting
Surface, Wall
