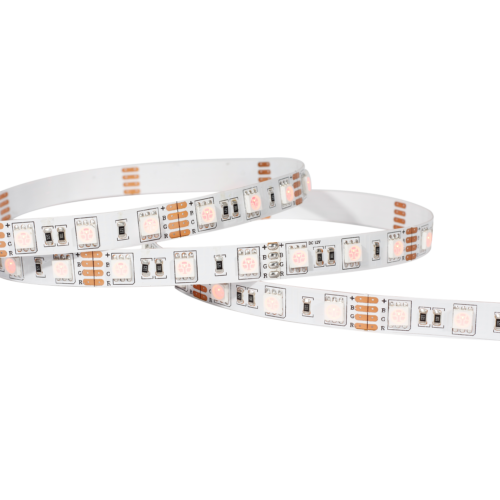

LED-Strips RGB

  • RGB LED-strip
  • 14,4W/m
  • IP20 or IP65 available
Read more

Show variants
Category:
CE markedRGB - Red Green Blue

Product info

DESCRIPTION

Sett stemningen med farget lys! Dette er en RGB LED-stripe av meget høy kvalitet. Stripen kommer i lengder på 5 meter. For utendørs montering eller baderom har vi en variant med IP65. For kjøling og best utseende anbefaler vi å montere LED-striper i en aluminiumsprofil. Se tilbehør for driveralternativer.

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Operating Temperature [°C]

-20 - 50

LIGHT TECHNICAL

CCT (Color Temperature) [K]

RGB

MOUNTING / CONNECTION

Max. length [m]

5

ELECTRICAL DATA

System Voltage [V]

24VDC

VARIANT SELECTION

Ingress Protection
Art. No. CRI [>]Lumen LED (tc=25)Ingress ProtectionColorLens DifuserMax Width Ledstrip
Energy label

LED-Strips RGB

Art. No. SC-IB-RGB2

Ingress Protection:

IP20

SC-IB-RGB2

IP20

Item status: Stock item

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 3Areas of use: IndoorVoltage: 24 voltRGB - Red Green Blue

Product

Ingress Protection

IP20

Length [mm]

5000

Width [mm]

10

Weight [kg]

0.15

Operating Temperature [°C]

-20 - 50

LIGHT TECHNICAL

Beam angle [°]

120

CCT (Color Temperature) [K]

RGB

Color Code

RGB

LED pr. meter

60

MOUNTING / CONNECTION

Connection

Kabel 2m

Heat sink needed

No

Cuttable [mm]

100

Max. length [m]

5

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

24VDC

Protection Class

3

System Power [W/m]

14.4

Luminous Efficacy [lm/W]

18

LED-Strips RGB

Art. No. SC-TWF6-RGB2

Ingress Protection:

IP65

SC-TWF6-RGB2

IP65

Item status: Stock item

DOCUMENTATION

CE marked Insulation class 3Areas of use: IndoorVoltage: 24 voltRGB - Red Green Blue

Product

Ingress Protection

IP65

Length [mm]

5000

Width [mm]

12.5

Weight [kg]

0.15

Operating Temperature [°C]

-20 - 50

LIGHT TECHNICAL

Beam angle [°]

120

CCT (Color Temperature) [K]

RGB

Color Code

RGB

LED pr. meter

60

MOUNTING / CONNECTION

Connection

Kabel 2m

Heat sink needed

No

Cuttable [mm]

100

Max. length [m]

5

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

24VDC

Protection Class

3

System Power [W/m]

14.4

Luminous Efficacy [lm/W]

18
