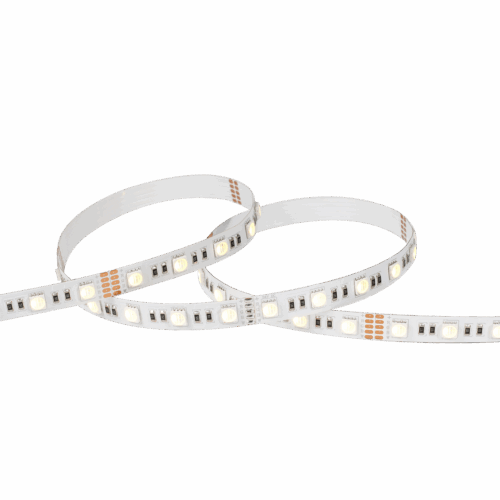

LED-Strips RGB+W

  • Choose between colored or white light (2700K)
  • IP20 or IP68
  • 5 meter length
Read more

Show variants
Category:

Product info

DESCRIPTION

Choose between colored or white light (2700K). This is a RGB LED-strip of hight quality. 5 meter length per strip. For outdoor use we have a IP68 version available. We recommend using aluminium profile for best cooling and look.

Please look at accessories for drivers.

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Operating Temperature [°C]

-20 - 50

MOUNTING / CONNECTION

Max. length [m]

5

VARIANT SELECTION

CCT [K]
Ingress Protection
Lumen pr/m
Art. No. CCT [K]Lumen LED (tc=25)Ingress ProtectionColorLens DifuserMax Width LedstripLumen pr/m
Energy label

LED-Strips RGB+W

Art. No. SC-OID4-2700-24

CCT [K]:

RGB+2700K

Ingress Protection:

IP20

Lumen pr/m:

880

SC-OID4-2700-24

RGB+2700K

IP20

880

Item status: Stock item

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 3Areas of use: IndoorVoltage: 24 voltRGB - Red Green Blue

Product

Ingress Protection

IP20

Length [mm]

5000

Width [mm]

10

Weight [kg]

0.2

Operating Temperature [°C]

-20 - 50

LIGHT TECHNICAL

Beam angle [°]

120

CCT (Color Temperature) [K]

RGB+2700K

CRI/Ra

90

Color Code

RGB+927

LED pr. meter

60

MOUNTING / CONNECTION

Connection

Kabel 2m

Heat sink needed

No

Cuttable [mm]

50

Max. length [m]

5

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

24VDC

Protection Class

3

System Power [W/m]

19.8

Luminous Efficacy [lm/W]

46

LED-Strips RGB+W

Art. No. SC-SF-OID2-4000-24

CCT [K]:

RGB+4000K

Ingress Protection:

IP68

Lumen pr/m:

637

SC-SF-OID2-4000-24

RGB+4000K

IP68

637

Item status: Stock item

DOCUMENTATION

CE marked Insulation class 3Areas of use: Approved for outdoor useVoltage: 24 voltRGB - Red Green Blue

Product

Ingress Protection

IP68

Length [mm]

5000

Width [mm]

16.5

Height [mm]

10.5

Weight [kg]

0.3

Operating Temperature [°C]

-20 - 50

LIGHT TECHNICAL

Beam angle [°]

120

CCT (Color Temperature) [K]

RGB+4000K

Color Code

RGBW

LED pr. meter

60

MOUNTING / CONNECTION

Connection

Kabel 2m

Heat sink needed

No

Cuttable [mm]

100

Max. length [m]

5

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

24VDC

Protection Class

3

System Power [W/m]

14.4

Luminous Efficacy [lm/W]

44
