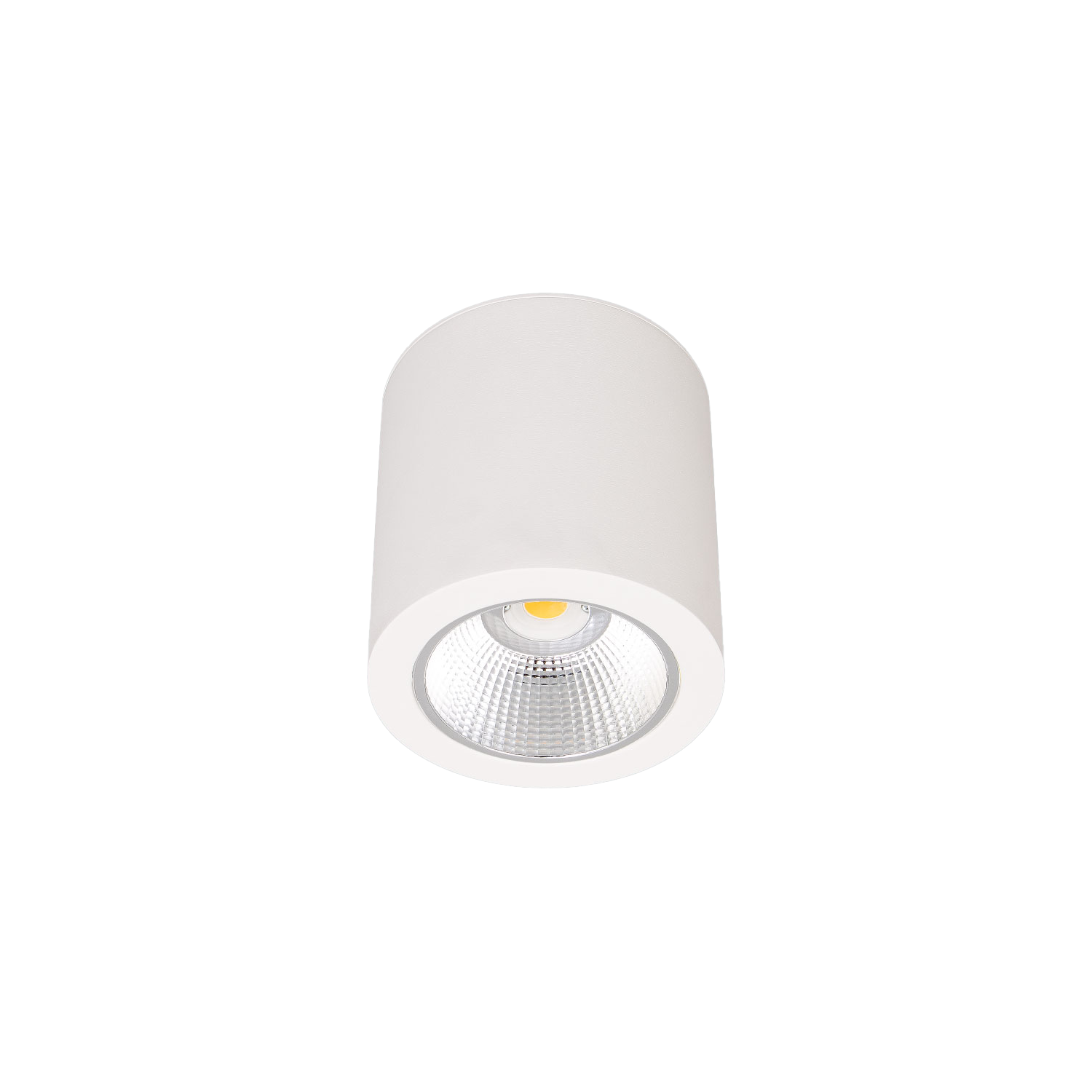

Leila C Mini Surface

Read more

Show variants
Category:
CE markedIP20: Indoor use.IK00Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product info

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Impact Protection

IK00

Width [mm]

140

Height [mm]

150

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

Operating Temperature [°C]

-25 - 50

LIGHT TECHNICAL

Lens (Diffuser)

Clear

ELECTRICAL DATA

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

20

MOUNTING / CONNECTION

Connection

QuickConnect

Mounting

Surface, Ceiling

VARIANT SELECTION

Effect [W]
Lumen LED (Tc=25)
CCT [K]
CRI [>]
Beam Angle°
Color
Lens Difuser
Light Control
Art. No. Effect [W]Lumen LED (Tc=25)CCT [K]CRI [>]Beam Angle°ColorLens DifuserLight Control
Energy label

Leila C Mini Surface

Art. No. 101360-70-2

Effect [W]:

20

Lumen LED (Tc=25):

3000

CCT [K]:

3000

CRI [>]:

80

Beam Angle°:

70°

Color:

Black

Lens Difuser:

Clear

Light Control:

QuickConnect

101360-70-2

20

3000

3000

80

70°

Black

Clear

QuickConnect

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.IK00Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Impact Protection

IK00

Color

Black

Width [mm]

140

Height [mm]

150

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

Operating Temperature [°C]

-25 - 50

LIGHT TECHNICAL

Lumen out [lm]

2715

Lumen LED (tc=25)

3000

Beam angle [°]

70°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

20

Luminous Efficacy [lm/W]

136

Max. Load pr. circuit - B10

65

Max. Load pr. circuit - B16

100

Max. Load pr. circuit - C10

65

Max. Load pr. circuit - C16

100

Inrush current Imax [A]

8

Inrush current time [µs]

80

Forward Current LED [mA]

500

MOUNTING / CONNECTION

Connection

QuickConnect

Mounting

Surface, Ceiling

Leila C Mini Surface

Art. No. 101360-70-2-ddd

Effect [W]:

20

Lumen LED (Tc=25):

3000

CCT [K]:

3000

CRI [>]:

80

Beam Angle°:

70°

Color:

Black

Lens Difuser:

Clear

Light Control:

QuickConnect

101360-70-2-ddd

20

3000

3000

80

70°

Black

Clear

QuickConnect

DALI certified

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.IK00Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Impact Protection

IK00

Color

Black

Width [mm]

140

Height [mm]

150

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

Operating Temperature [°C]

-25 - 50

LIGHT TECHNICAL

Lumen out [lm]

2715

Lumen LED (tc=25)

3000

Beam angle [°]

70°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

DALI

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

20

Luminous Efficacy [lm/W]

136

Max. Load pr. circuit - B10

40

Max. Load pr. circuit - B16

80

Max. Load pr. circuit - C10

50

Max. Load pr. circuit - C16

136

Inrush current Imax [A]

20

Inrush current time [µs]

50

Forward Current LED [mA]

500

MOUNTING / CONNECTION

Connection

QuickConnect

Mounting

Surface, Ceiling

Leila C Mini Surface

Art. No. 101360-70-3

Effect [W]:

20

Lumen LED (Tc=25):

3000

CCT [K]:

3000

CRI [>]:

80

Beam Angle°:

70°

Color:

White

Lens Difuser:

Clear

Light Control:

QuickConnect

101360-70-3

20

3000

3000

80

70°

White

Clear

QuickConnect

Item status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use.IK00Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Impact Protection

IK00

Color

White

Width [mm]

140

Height [mm]

150

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

Operating Temperature [°C]

-25 - 50

LIGHT TECHNICAL

Lumen out [lm]

2715

Lumen LED (tc=25)

3000

Beam angle [°]

70°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

20

Luminous Efficacy [lm/W]

136

Max. Load pr. circuit - B10

65

Max. Load pr. circuit - B16

100

Max. Load pr. circuit - C10

65

Max. Load pr. circuit - C16

100

Inrush current Imax [A]

8

Inrush current time [µs]

80

Forward Current LED [mA]

500

MOUNTING / CONNECTION

Connection

QuickConnect

Mounting

Surface, Ceiling

Leila C Mini Surface

Art. No. 101360-70-3-ddd

Effect [W]:

20

Lumen LED (Tc=25):

3000

CCT [K]:

3000

CRI [>]:

80

Beam Angle°:

70°

Color:

White

Lens Difuser:

Clear

Light Control:

QuickConnect

101360-70-3-ddd

20

3000

3000

80

70°

White

Clear

QuickConnect

DALI certified

Item status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use.IK00Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Impact Protection

IK00

Color

White

Width [mm]

140

Height [mm]

150

Weight [kg]

1

Lifetime [h]

L80B10: 60 000

Operating Temperature [°C]

-25 - 50

LIGHT TECHNICAL

Lumen out [lm]

2715

Lumen LED (tc=25)

3000

Beam angle [°]

70°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

MacAdam [SDCM]

3

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

DALI

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

20

Luminous Efficacy [lm/W]

136

Max. Load pr. circuit - B10

40

Max. Load pr. circuit - B16

80

Max. Load pr. circuit - C10

50

Max. Load pr. circuit - C16

136

Inrush current Imax [A]

20

Inrush current time [µs]

50

Forward Current LED [mA]

500

MOUNTING / CONNECTION

Connection

QuickConnect

Mounting

Surface, Ceiling
