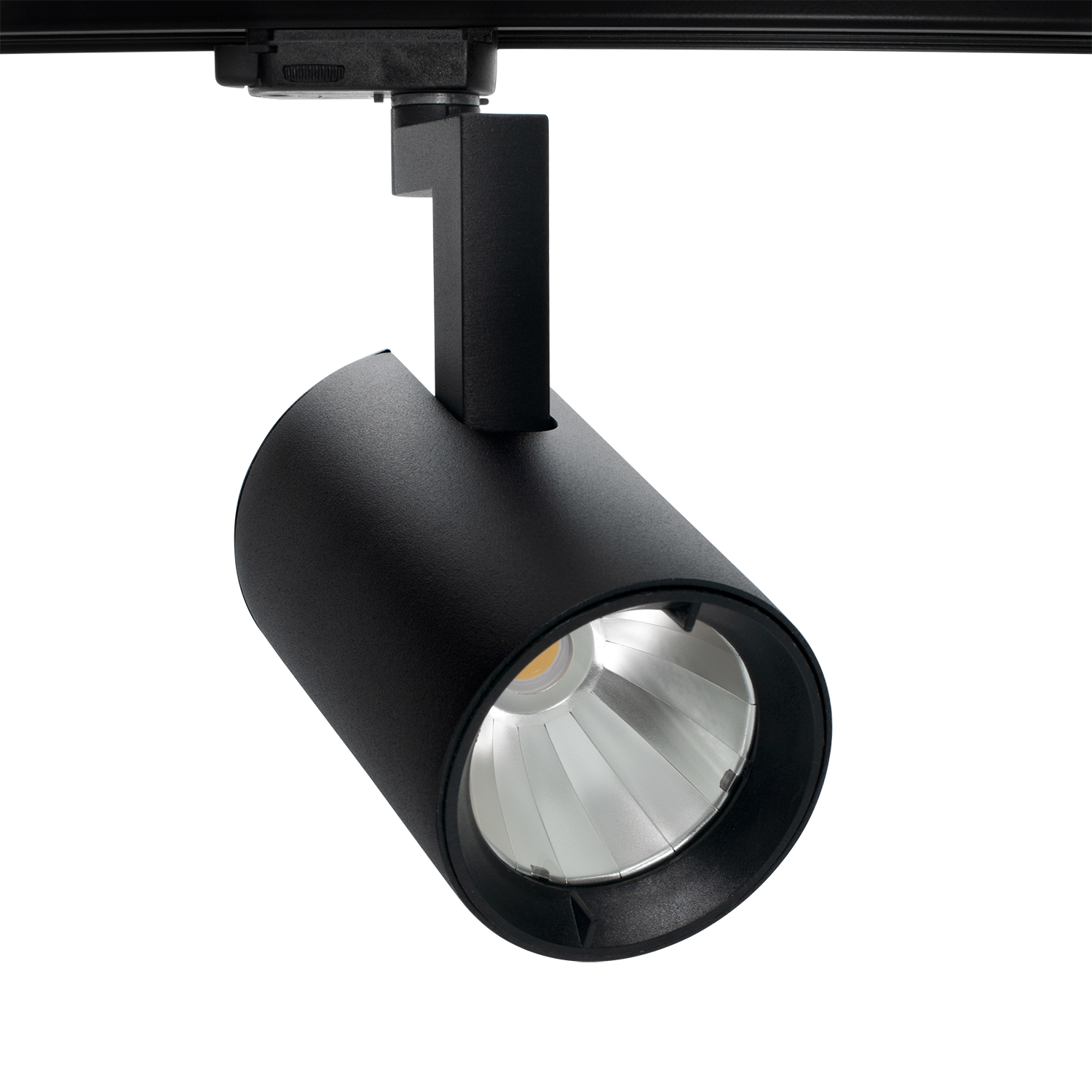

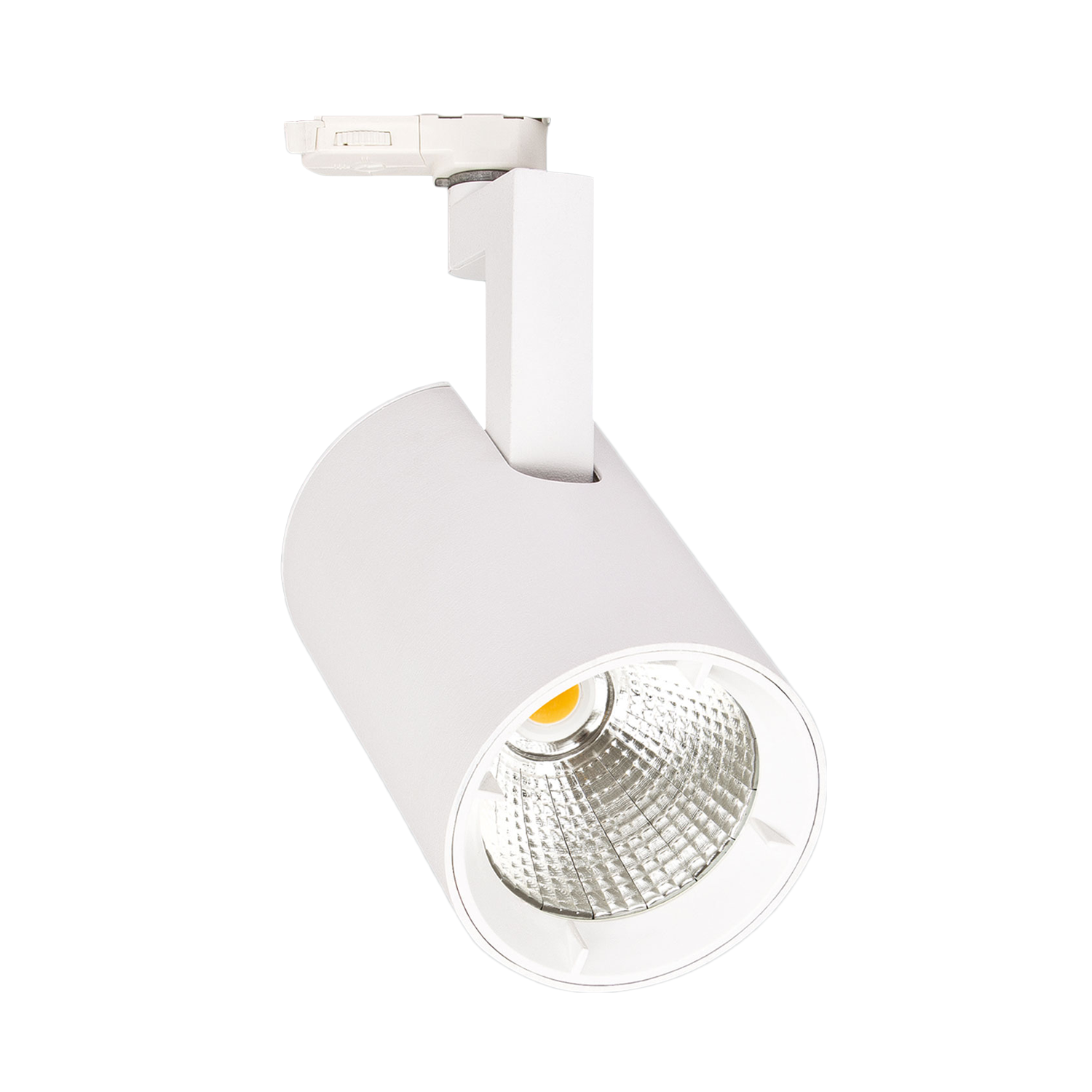

Ray Mini

  • Skinnemontert spotlight
  • 90° tilt – 350° rotering
  • Diffuser kan benyttes (selges separat)
Read more

Show variants
CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

Ray Mini uses the possibillities created by new technology. The LED driver is mounted inside the luminare body. This gives us a slim design combined with a powerful lightoutput that can be easily adjusted in all directions to meet all needs. Ray Mini can be tilted 90 degrees and rotated 350 degrees its own axis.

To create further opportunities to play with light you can mount a diffuser on the luminaire, this can be ordered separately.

Documents

Family data sheet Dimension All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

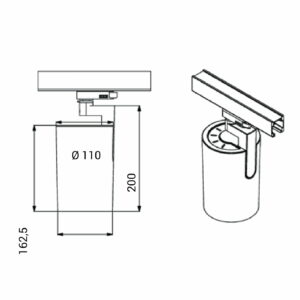

Width [mm]

110

Height [mm]

200

LIGHT TECHNICAL

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

23

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

MOUNTING / CONNECTION

Mounting

Track, Ceiling

VARIANT SELECTION

CRI [>]
CCT [K]
Beam Angle°
Color
Lumen LED (tc=25)
Art. No. CRI [>]CCT [K]Beam Angle°ColorLumen LED (tc=25)
Energy label

Ray Mini

Art. No. 18156-5-20-3

CRI [>]:

95

CCT [K]:

Arctic White

Beam Angle°:

20°

Color:

White

Lumen LED (tc=25):

2155

18156-5-20-3

95

Arctic White

20°

White

2155

Item status: Stock item

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

White

Width [mm]

110

Height [mm]

200

LIGHT TECHNICAL

Lumen LED (tc=25)

2155

Beam angle [°]

20°

CCT (Color Temperature) [K]

Arctic White

CRI/Ra

95

Color Code

Arctic White

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

23

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

600

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Ray Mini

Art. No. 18156-6-20-2

CRI [>]:

95

CCT [K]:

Arctic White

Beam Angle°:

20°

Color:

Black

Lumen LED (tc=25):

2700

18156-6-20-2

95

Arctic White

20°

Black

2700

Product

Ingress Protection

IP20

Color

Black

Width [mm]

110

Height [mm]

200

LIGHT TECHNICAL

Lumen out [lm]

2460

Lumen LED (tc=25)

2700

Beam angle [°]

20°

CCT (Color Temperature) [K]

Arctic White

CRI/Ra

95

Color Code

Arctic White

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

23

Luminous Efficacy [lm/W]

107

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

600

Voltage forward, Min. [V]

29.2

Voltage forward, Max. [V]

41.6

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Ray Mini

Art. No. 18156-6-30-2

CRI [>]:

95

CCT [K]:

Arctic White

Beam Angle°:

30°

Color:

Black

Lumen LED (tc=25):

2700

18156-6-30-2

95

Arctic White

30°

Black

2700

Product

Ingress Protection

IP20

Color

Black

Width [mm]

110

Height [mm]

200

LIGHT TECHNICAL

Lumen out [lm]

2545

Lumen LED (tc=25)

2700

Beam angle [°]

30°

CCT (Color Temperature) [K]

Arctic White

CRI/Ra

95

Color Code

Arctic White

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

23

Luminous Efficacy [lm/W]

111

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

600

Voltage forward, Min. [V]

29.2

Voltage forward, Max. [V]

41.6

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Ray Mini

Art. No. 18156-6-30-3

CRI [>]:

95

CCT [K]:

Arctic White

Beam Angle°:

30°

Color:

White

Lumen LED (tc=25):

2700

18156-6-30-3

95

Arctic White

30°

White

2700

Product

Ingress Protection

IP20

Color

White

Width [mm]

110

Height [mm]

200

LIGHT TECHNICAL

Lumen out [lm]

2545

Lumen LED (tc=25)

2700

Beam angle [°]

30°

CCT (Color Temperature) [K]

Arctic White

CRI/Ra

95

Color Code

Arctic White

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

23

Luminous Efficacy [lm/W]

111

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

600

Voltage forward, Min. [V]

29.2

Voltage forward, Max. [V]

41.6

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Ray Mini

Art. No. 18156-6-40-2

CRI [>]:

95

CCT [K]:

Arctic White

Beam Angle°:

40°

Color:

Black

Lumen LED (tc=25):

2700

18156-6-40-2

95

Arctic White

40°

Black

2700

Product

Ingress Protection

IP20

Color

Black

Width [mm]

110

Height [mm]

200

LIGHT TECHNICAL

Lumen out [lm]

2500

Lumen LED (tc=25)

2700

Beam angle [°]

40°

CCT (Color Temperature) [K]

Arctic White

CRI/Ra

95

Color Code

Arctic White

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

23

Luminous Efficacy [lm/W]

109

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

600

Voltage forward, Min. [V]

29.2

Voltage forward, Max. [V]

41.6

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Ray Mini

Art. No. 18157-6-40-3

CRI [>]:

80

CCT [K]:

3500

Beam Angle°:

40°

Color:

White

Lumen LED (tc=25):

2700

18157-6-40-3

80

3500

40°

White

2700

Product

Ingress Protection

IP20

Color

White

Width [mm]

110

Height [mm]

200

LIGHT TECHNICAL

Lumen LED (tc=25)

2700

Beam angle [°]

40°

CCT (Color Temperature) [K]

3500

CRI/Ra

80

Color Code

835

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

23

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

600

Voltage forward, Min. [V]

30.2

Voltage forward, Max. [V]

41.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Ray Mini

Art. No. 18160-5-20-3

CRI [>]:

80

CCT [K]:

4000

Beam Angle°:

20°

Color:

White

Lumen LED (tc=25):

3200

18160-5-20-3

80

4000

20°

White

3200

Item status: Stock item

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

White

Width [mm]

110

Height [mm]

200

LIGHT TECHNICAL

Lumen LED (tc=25)

3200

Beam angle [°]

20°

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

23

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

600

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Ray Mini

Art. No. 18160-6-30-2

CRI [>]:

80

CCT [K]:

4000

Beam Angle°:

30°

Color:

Black

Lumen LED (tc=25):

3600

18160-6-30-2

80

4000

30°

Black

3600

Product

Ingress Protection

IP20

Color

Black

Width [mm]

110

Height [mm]

200

LIGHT TECHNICAL

Lumen out [lm]

3290

Lumen LED (tc=25)

3600

Beam angle [°]

30°

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

23

Luminous Efficacy [lm/W]

143

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

600

Voltage forward, Min. [V]

30.2

Voltage forward, Max. [V]

41.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Ray Mini

Art. No. 18160-6-40-3

CRI [>]:

80

CCT [K]:

4000

Beam Angle°:

40°

Color:

White

Lumen LED (tc=25):

3600

18160-6-40-3

80

4000

40°

White

3600

Product

Ingress Protection

IP20

Color

White

Width [mm]

110

Height [mm]

200

LIGHT TECHNICAL

Lumen out [lm]

3231

Lumen LED (tc=25)

3600

Beam angle [°]

40°

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

23

Luminous Efficacy [lm/W]

140

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

600

Voltage forward, Min. [V]

30.2

Voltage forward, Max. [V]

41.7

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling
