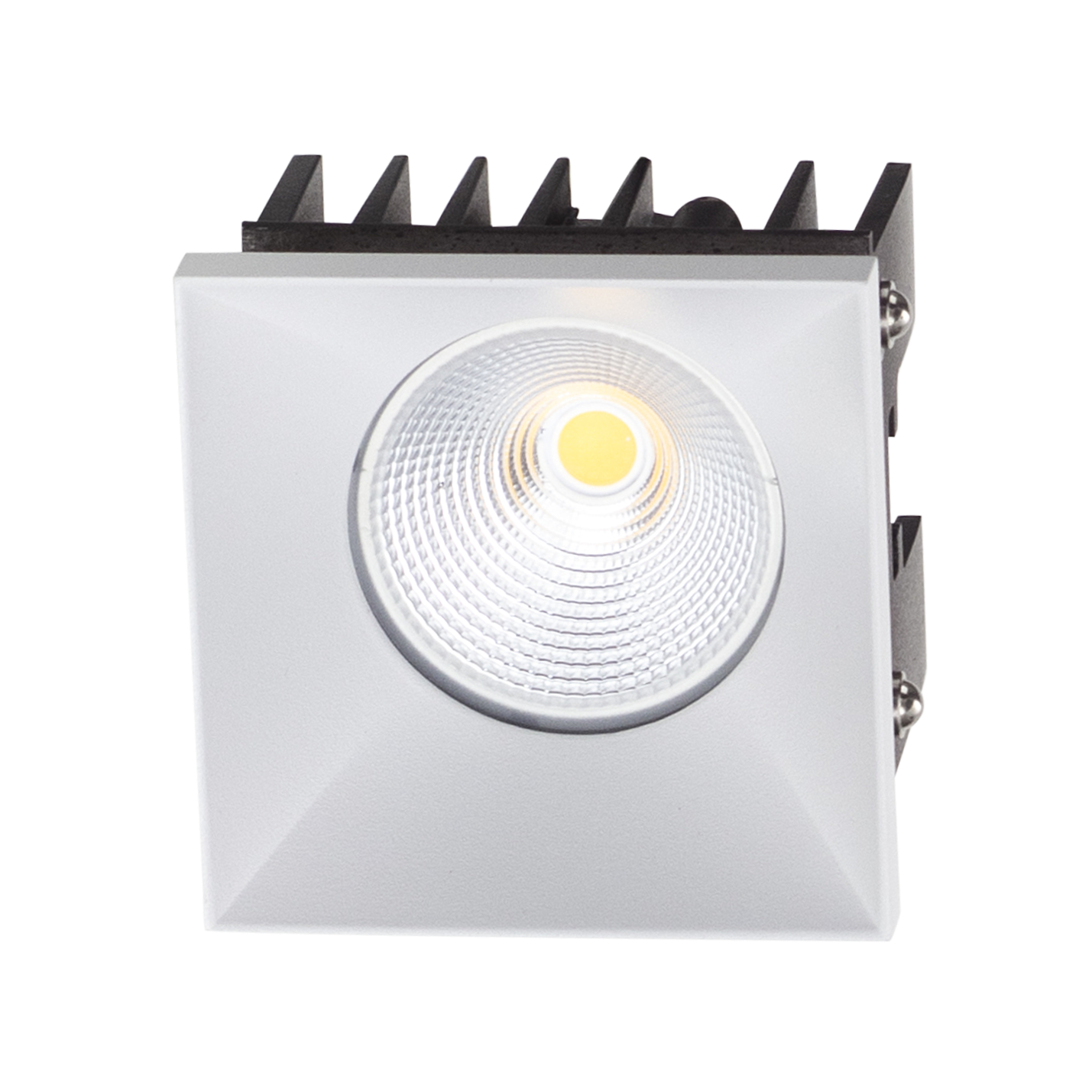

Rise L

  • Square shaped downlight with encluded light source
  • 2700K or 3000K
  • Front ring sold separately
Read more

Show variants
CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

Square downlight suitable for most rooms. Single and double installation kit are not included.
Gold front ring can be bought separately.

Mounting

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Length [mm]

67

Width [mm]

67

Height [mm]

57

ELECTRICAL DATA

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

Max. power, lightsource [W]

NA

System Power [W]

9,2

MOUNTING / CONNECTION

Connection

Terminal

Cut-out [mm]

Ø76XØ76

Mounting

Recessed, Ceiling

VARIANT SELECTION

Lumen LED (tc=25)
CCT [K]
Color
Art. No. Lumen LED (tc=25)CCT [K]ColorLens Difuser
Energy label

Rise L

Art. No. 11093-32-2

Lumen LED (tc=25):

950

CCT [K]:

2700

Color:

Black

11093-32-2

950

2700

Black

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

67

Width [mm]

67

Height [mm]

57

LIGHT TECHNICAL

Lumen out [lm]

924

Lumen LED (tc=25)

950

Beam angle [°]

32°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

Max. power, lightsource [W]

NA

System Power [W]

9,2

Max. Load pr. circuit - B10

35

Max. Load pr. circuit - B16

56

Max. Load pr. circuit - C10

74

Max. Load pr. circuit - C16

118

Leakage current [mA]

0.7

Inrush current Imax [A]

5

Inrush current time [µs]

300

Forward Current LED [mA]

500

MOUNTING / CONNECTION

Connection

Terminal

Cut-out [mm]

Ø76XØ76

Mounting

Recessed, Ceiling

Accessories

Rise L

Art. No. 11093-32-3

Lumen LED (tc=25):

950

CCT [K]:

2700

Color:

White

11093-32-3

950

2700

White

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

67

Width [mm]

67

Height [mm]

57

LIGHT TECHNICAL

Lumen out [lm]

924

Lumen LED (tc=25)

950

Beam angle [°]

32°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

Max. power, lightsource [W]

NA

System Power [W]

9,2

Max. Load pr. circuit - B10

35

Max. Load pr. circuit - B16

56

Max. Load pr. circuit - C10

74

Max. Load pr. circuit - C16

118

Leakage current [mA]

0.7

Inrush current Imax [A]

5

Inrush current time [µs]

300

Forward Current LED [mA]

500

MOUNTING / CONNECTION

Connection

Terminal

Cut-out [mm]

Ø76XØ76

Mounting

Recessed, Ceiling

Accessories

Rise L

Art. No. 11094-32-2

Lumen LED (tc=25):

900

CCT [K]:

3000

Color:

Black

11094-32-2

900

3000

Black

Item status: Stock item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

67

Width [mm]

67

Height [mm]

57

LIGHT TECHNICAL

Lumen LED (tc=25)

900

Beam angle [°]

32°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

Max. power, lightsource [W]

NA

System Power [W]

9,2

Max. Load pr. circuit - B10

35

Max. Load pr. circuit - B16

56

Max. Load pr. circuit - C10

74

Max. Load pr. circuit - C16

118

Leakage current [mA]

0.7

Inrush current Imax [A]

5

Inrush current time [µs]

300

Forward Current LED [mA]

500

Voltage forward, Min. [V]

24.5

MOUNTING / CONNECTION

Connection

Terminal

Cut-out [mm]

76x76

Mounting

Recessed, Ceiling

Accessories

Rise L

Art. No. 11094-32-3

Lumen LED (tc=25):

1050

CCT [K]:

3000

Color:

White

11094-32-3

1050

3000

White

Item status: Stock item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

67

Width [mm]

67

Height [mm]

57

LIGHT TECHNICAL

Lumen out [lm]

1036

Lumen LED (tc=25)

1050

Beam angle [°]

32°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

Max. power, lightsource [W]

NA

System Power [W]

9,2

Max. Load pr. circuit - B10

35

Max. Load pr. circuit - B16

56

Max. Load pr. circuit - C10

74

Max. Load pr. circuit - C16

118

Leakage current [mA]

0.7

Inrush current Imax [A]

5

Inrush current time [µs]

300

Forward Current LED [mA]

500

Voltage forward, Min. [V]

24.5

MOUNTING / CONNECTION

Connection

Terminal

Cut-out [mm]

76x76

Mounting

Recessed, Ceiling

Accessories
