Seta Double

Read more

CE markedIP20: Indoor use.Insulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

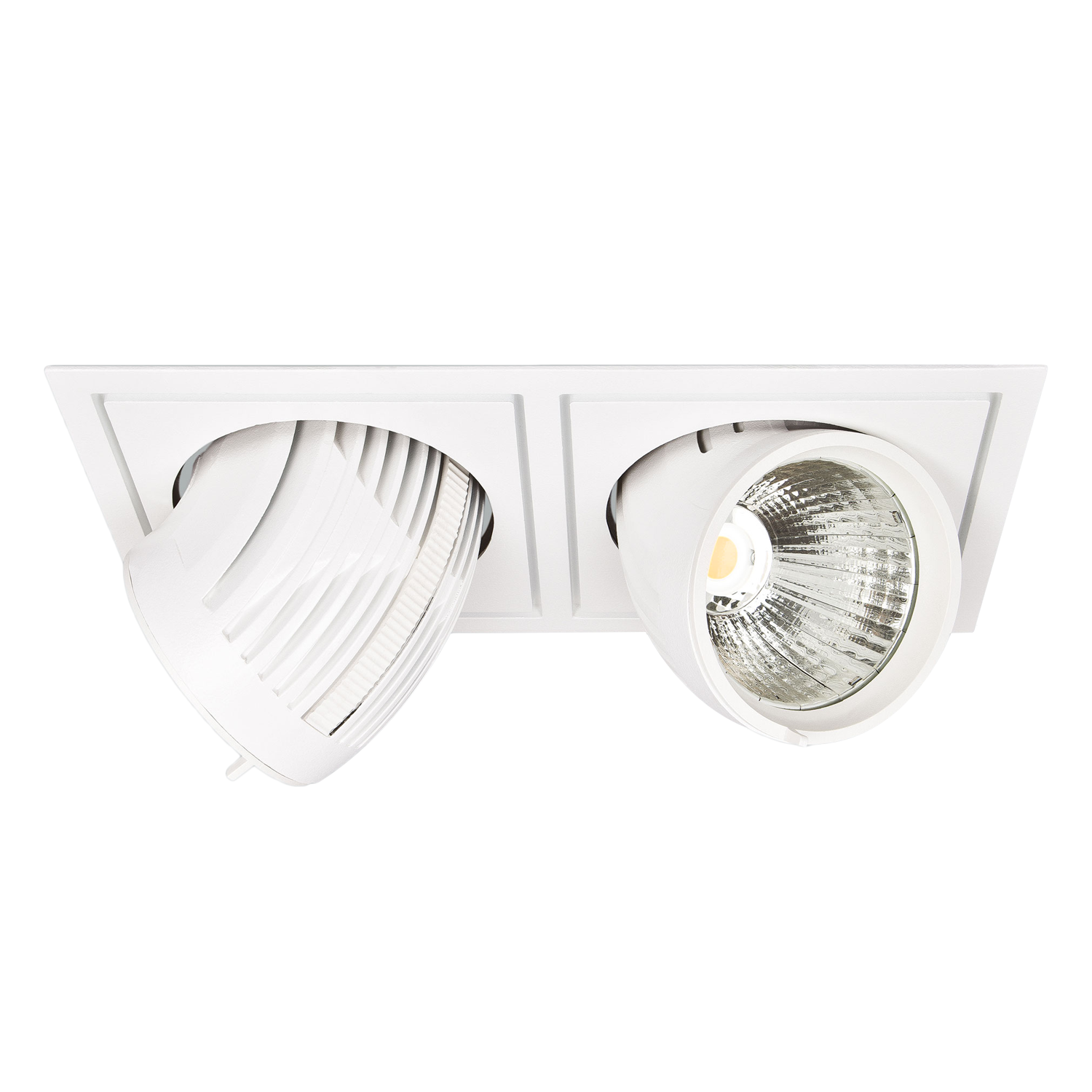

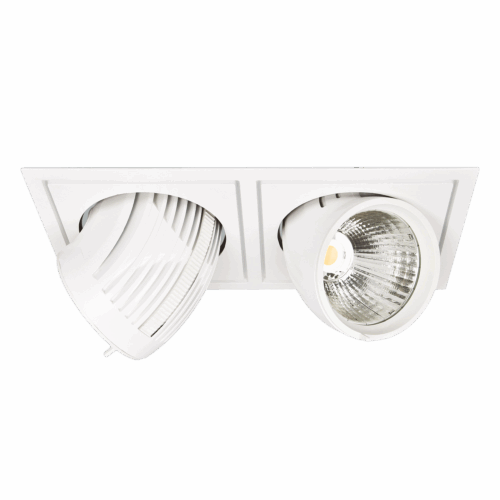

Seta Double is the clear choice when one wants recessed spot lighting. This favorite can be found in stores throughout the Nordic region. Thanks to large adjustment possibilities Seta Double is with out doubt one of the best in its class.

Seta Double has 18i3 connector and can be supplied with a variety of connector options. The luminaire is available in three different colors.

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Length [mm]

323

Width [mm]

186

Height [mm]

120

LIGHT TECHNICAL

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

2x31

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

30.6

Voltage forward, Max. [V]

39.2

MOUNTING / CONNECTION

Connection

18i3 Quick connection

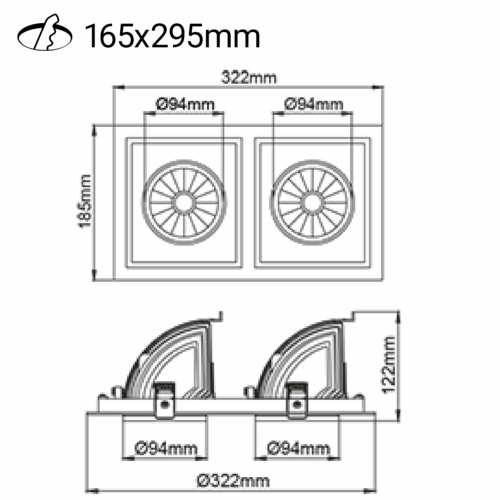

Cut-out [mm]

165x295

Mounting

Recessed, Ceiling

VARIANT SELECTION

Effect [W]
Lumen LED (Tc=25)
CCT [K]
CRI [>]
Beam Angle°
Color
Lens Difuser
Light Control
Art. No. Effect [W]Lumen LED (Tc=25)CCT [K]CRI [>]Beam Angle°ColorLens DifuserLight Control
Energy label

Seta Double

Art. No. 30245-7-230-3

Effect [W]:

2x30

Lumen LED (Tc=25):

2x3750

CCT [K]:

3000

CRI [>]:

90

Beam Angle°:

30°

Color:

White

Lens Difuser:

Clear

Light Control:

18i3 Quick connection

30245-7-230-3

2x30

2x3750

3000

90

30°

White

Clear

18i3 Quick connection

Item status: Stock item

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Seta Double is the clear choice when one wants recessed spot lighting. This favorite can be found in stores throughout the Nordic region. Thanks to large adjustment possibilities Seta Double is with out doubt one of the best in its class.

Seta Double has 18i3 connector and can be supplied with a variety of connector options. The luminaire is available in three different colors.

Product

Ingress Protection

IP20

Color

White

Length [mm]

323

Width [mm]

186

Height [mm]

120

LIGHT TECHNICAL

Lumen LED (tc=25)

2x3750

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

2x30

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

Voltage forward, Min. [V]

30.6

Voltage forward, Max. [V]

39.2

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

165x295

Mounting

Recessed, Ceiling
