Stream C

  • Industrial light fixture
  • Ceiling surface mounting or pending down with wires
  • IP65 classified
Read more

Show variants
Category:
CE markedIP65: IP6x er høyeste tetthetsklasse for mekanisk inntrenging (objekter/støv). Meget godt egnet for utendørs bruk.IK08: Beskyttelse mot slag tilsvarende 1,7kg fra 300mm høyde.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

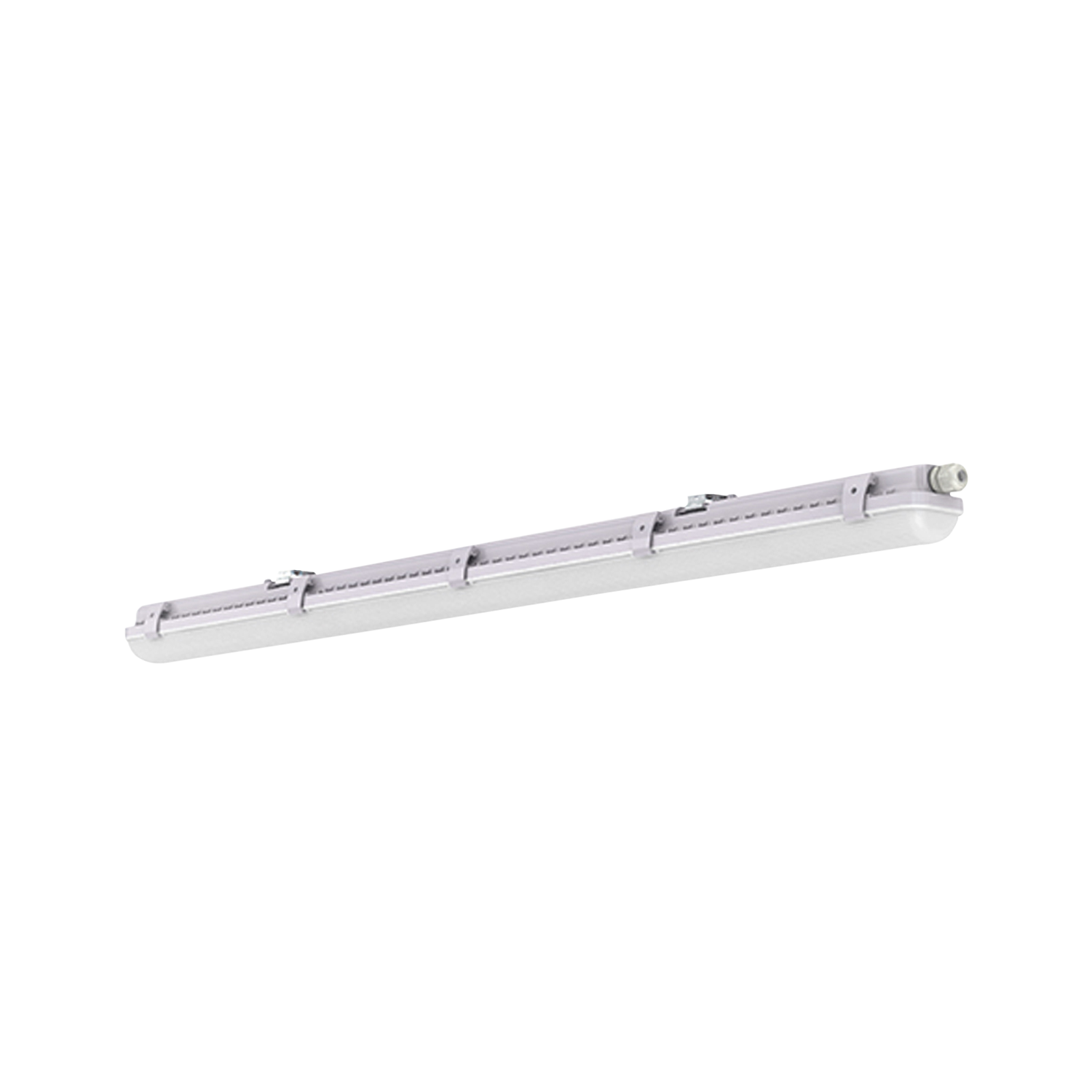

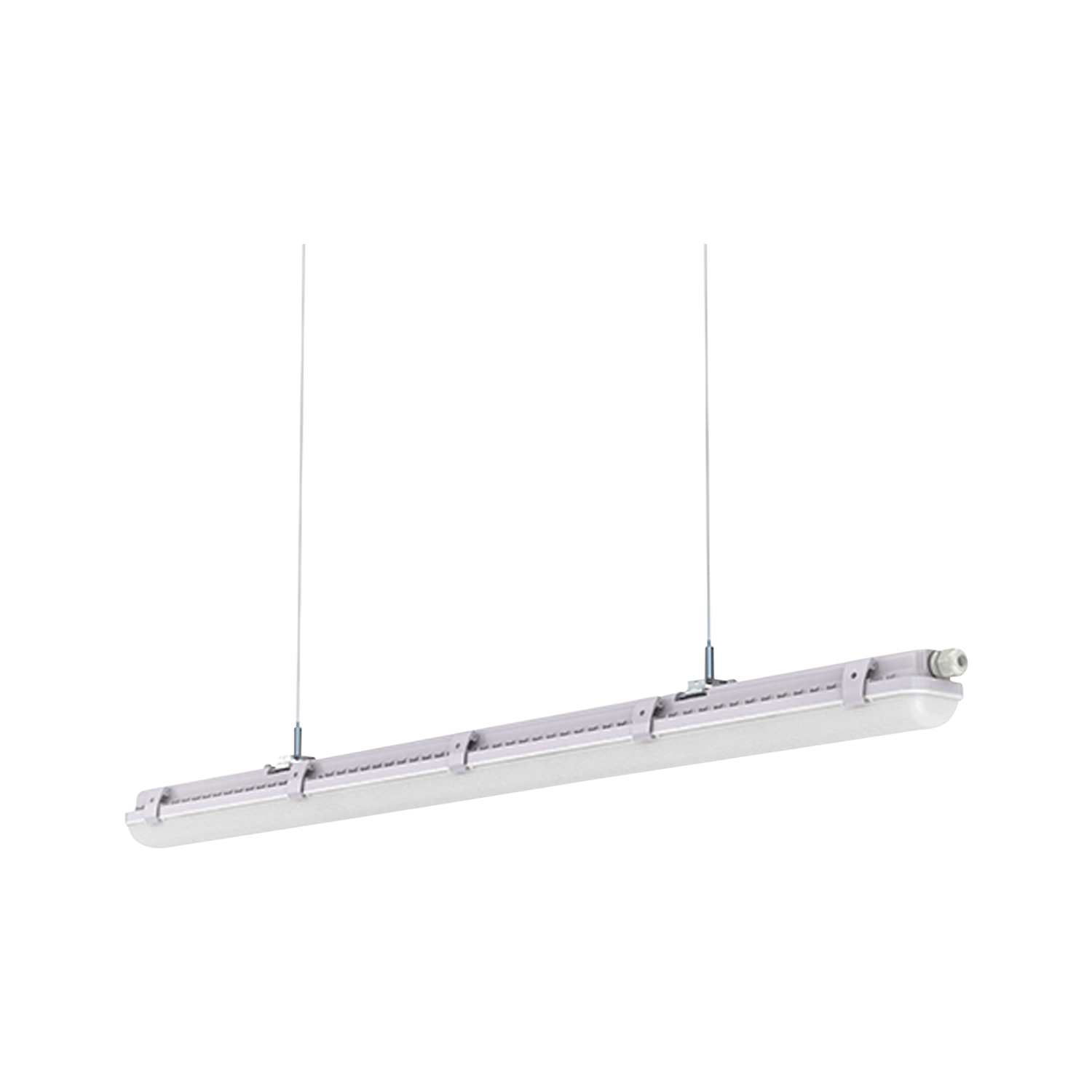

Stream C is a sealed industrial light fixture for ceiling surface mounting or pending down with wires, indoor and outdoor. The Stream is classified in accordance with IP65.

The light fixture is made from robust fiber glass and is equipped with a milky white (opal) diffusor w/stripe. The Stream is prepared for cable 5×2,5mm2 wiring through for an efficient installation.

Documents

Family data sheet Manufacturers Datasheet Revit (.zip) All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP65

Impact Protection

IK08

Color

Grey

Lifetime [h]

L80B10: 100 000

Operating Temperature [°C]

-20 - 40

LIGHT TECHNICAL

Beam angle [°]

120

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

Lightsource type

LED (built in)

Lens (Diffuser)

Opal

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Through-wiring [mm2]

5x2,5

MOUNTING / CONNECTION

Connection

Terminalx2

Mounting

Surface, Suspended

VARIANT SELECTION

Effect [W]
Lumen LED (Tc=25)
CCT [K]
CRI [>]
Beam Angle°
Light Control
Color
Lens Difuser
Length [mm]
Dimming
Art. No. Effect [W]Lumen LED (Tc=25)CCT [K]CRI [>]Beam Angle°Light ControlColorLens DifuserLength [mm]Dimming
Energy label

Stream C

Art. No. 0451-02

Effect [W]:

51

Lumen LED (Tc=25):

7400

CCT [K]:

4000

CRI [>]:

80

Beam Angle°:

120

Light Control:

Terminalx2

Color:

Grey

Lens Difuser:

Opal

Length [mm]:

1502.0

Dimming:

None

0451-02

51

7400

4000

80

120

Terminalx2

Grey

Opal

1502.0

None

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP65: IP6x er høyeste tetthetsklasse for mekanisk inntrenging (objekter/støv). Meget godt egnet for utendørs bruk.IK08: Beskyttelse mot slag tilsvarende 1,7kg fra 300mm høyde.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Stream C is a sealed industrial light fixture for ceiling surface mounting or pending down with wires, indoor and outdoor. The Stream is classified in accordance with IP65.

The light fixture is made from robust fiber glass and is equipped with a milky white (opal) diffusor w/stripe. The Stream is prepared for cable 5×2,5mm2 wiring through for an efficient installation.

Product

Ingress Protection

IP65

Impact Protection

IK08

Color

Grey

Length [mm]

1502

Width [mm]

96

Height [mm]

81

Weight [kg]

2.6

Lifetime [h]

L80B10: 100 000

Operating Temperature [°C]

-20 - 40

LIGHT TECHNICAL

Lumen out [lm]

6626

Lumen LED (tc=25)

7400

Beam angle [°]

120

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

Lightsource type

LED (built in)

Lens (Diffuser)

Opal

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

51

Luminous Efficacy [lm/W]

130

Max. Load pr. circuit - B10

16

Max. Load pr. circuit - B16

32

Max. Load pr. circuit - C10

20

Max. Load pr. circuit - C16

40

Leakage current [mA]

0.45

Inrush current Imax [A]

13

Inrush current time [µs]

50

Through-wiring [mm2]

5x2,5

MOUNTING / CONNECTION

Connection

Terminalx2

Mounting

Surface, Suspended

Stream C

Art. No. 0452-02

Effect [W]:

21

Lumen LED (Tc=25):

2990

CCT [K]:

4000

CRI [>]:

80

Beam Angle°:

120

Light Control:

Terminalx2

Color:

Grey

Lens Difuser:

Opal

Length [mm]:

602.0

Dimming:

None

0452-02

21

2990

4000

80

120

Terminalx2

Grey

Opal

602.0

None

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP65: IP6x er høyeste tetthetsklasse for mekanisk inntrenging (objekter/støv). Meget godt egnet for utendørs bruk.IK08: Beskyttelse mot slag tilsvarende 1,7kg fra 300mm høyde.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Stream C is a sealed industrial light fixture for ceiling surface mounting or pending down with wires, indoor and outdoor. The Stream is classified in accordance with IP65.

The light fixture is made from robust fiber glass and is equipped with a milky white (opal) diffusor w/stripe. The Stream is prepared for cable 5×2,5mm2 wiring through for an efficient installation.

Product

Ingress Protection

IP65

Impact Protection

IK08

Color

Grey

Length [mm]

602

Width [mm]

96

Height [mm]

81

Lifetime [h]

L80B10: 100 000

Operating Temperature [°C]

-20 - 40

LIGHT TECHNICAL

Lumen out [lm]

2580

Lumen LED (tc=25)

2990

Beam angle [°]

120

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

Lightsource type

LED (built in)

Lens (Diffuser)

Opal

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

21

Luminous Efficacy [lm/W]

123

Max. Load pr. circuit - B10

65

Max. Load pr. circuit - B16

110

Max. Load pr. circuit - C10

75

Max. Load pr. circuit - C16

120

Leakage current [mA]

0.45

Inrush current Imax [A]

8

Inrush current time [µs]

80

Through-wiring [mm2]

5x2,5

MOUNTING / CONNECTION

Connection

Terminalx2

Mounting

Surface, Suspended
