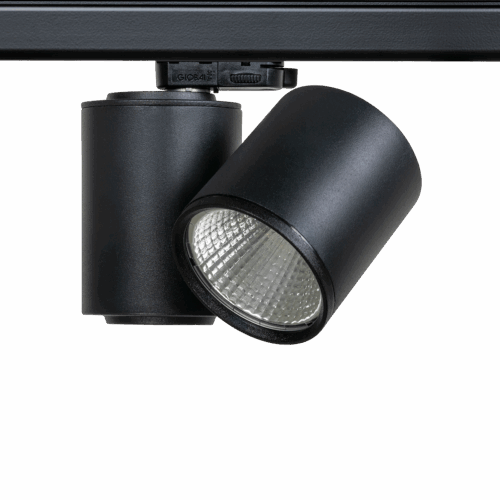

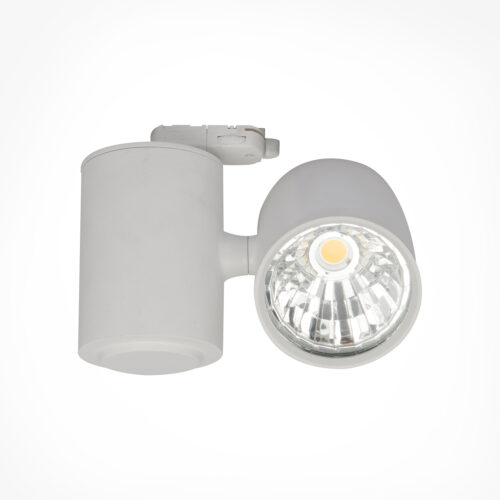

Tube

Read more

Show variants
CE markedIP20: Indoor use

Product info

DESCRIPTION

The Tube with its very modern design has rapidly become a favorite amongst designers. This model has a high efficiency reflector producing a lot of light at a very modest level of power consumption. The Tube is very flexible and offers great possibilities for true designers light in stores.

Documents

Family data sheet Dimension All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Width [mm]

94

Height [mm]

197

Lifetime [h]

L80B50: 50 000

LIGHT TECHNICAL

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track

VARIANT SELECTION

Effect [W]
CRI [>]
CCT [K]
Beam Angle°
Color
Art. No. Effect [W]CRI [>]CCT [K]Beam Angle°Color
Energy label

Tube

Art. No. 30848-20-2

Effect [W]:

26

CRI [>]:

95

CCT [K]:

Arctic White

Beam Angle°:

20

Color:

Black

30848-20-2

26

95

Arctic White

20

Black

Item status: Stock item

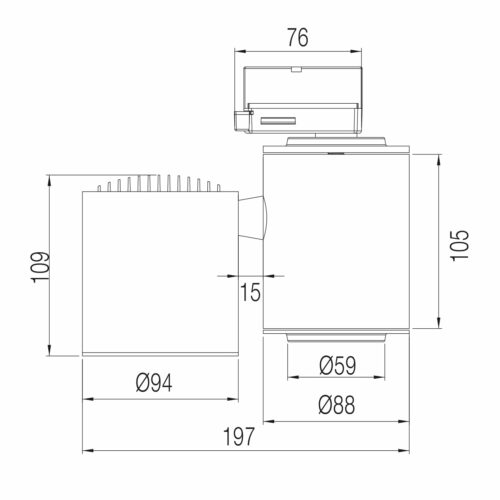

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

Black

Width [mm]

94

Height [mm]

197

Lifetime [h]

L80B50: 50 000

LIGHT TECHNICAL

Lumen LED (tc=25)

2360

Beam angle [°]

20

CCT (Color Temperature) [K]

Arctic White

CRI/Ra

95

Color Code

Arctic White

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

26

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track

Tube

Art. No. 30848-30-2

Effect [W]:

26

CRI [>]:

95

CCT [K]:

Arctic White

Beam Angle°:

30

Color:

Black

30848-30-2

26

95

Arctic White

30

Black

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

Black

Width [mm]

94

Height [mm]

197

Lifetime [h]

L80B50: 50 000

LIGHT TECHNICAL

Lumen LED (tc=25)

2360

Beam angle [°]

30

CCT (Color Temperature) [K]

Arctic White

CRI/Ra

95

Color Code

Arctic White

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

26

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track

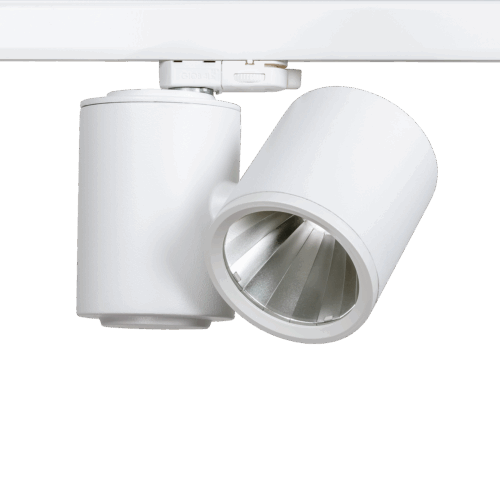

Tube

Art. No. 30852-20-3

Effect [W]:

31

CRI [>]:

80

CCT [K]:

2700

Beam Angle°:

20

Color:

White

30852-20-3

31

80

2700

20

White

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

White

Width [mm]

94

Height [mm]

197

Lifetime [h]

L80B50: 50 000

LIGHT TECHNICAL

Beam angle [°]

20

CCT (Color Temperature) [K]

2700

CRI/Ra

80

Color Code

827

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

31

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track
