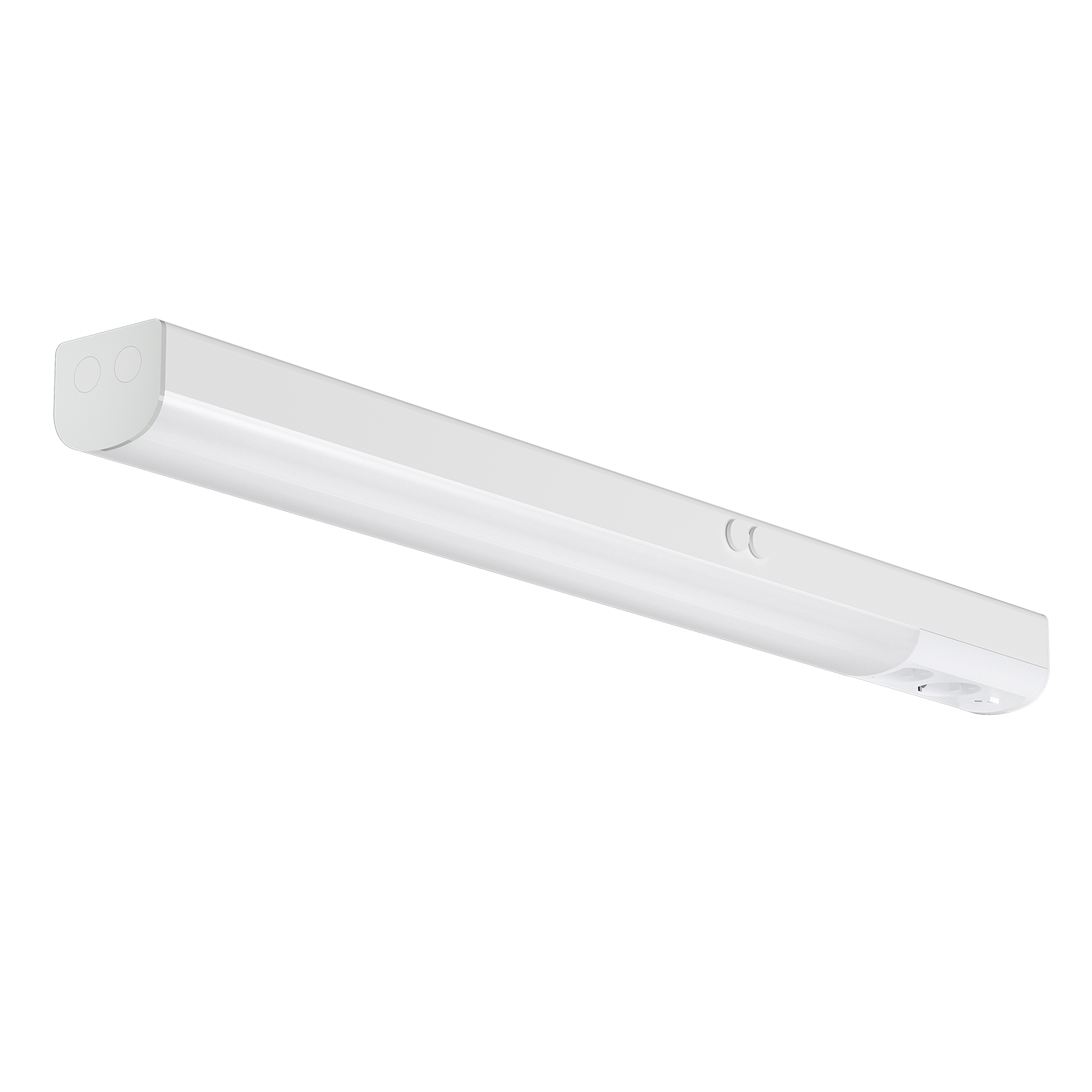

Areto Kitchen

  • Suitable for lighting working areas on kitchen and laundry room
  • ON/OFF -switch and double socket
  • Available in 550mm and 750mm
Read more

Show variants
CE markedIP20: Indoor use

Product info

DESCRIPTION

Areto benkarmatur er optimal for å belyse arbeidsflaten på kjøkkenet og vaskerom. Armaturen har av/på knapp og dobbel stikkontakt.

Leveres med Kelvin switch – velg mellom 3000K og 4000K. Armaturen er laget i støpt aluminium med opal polykarbonat diffusere.

Mounting

Documents

Family data sheet Emulat (.ldt) All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Impact Protection

IK09

Housing Material

Aluminium 6063

Operating Temperature [°C]

-10 - 40

LIGHT TECHNICAL

Lens (Diffuser)

PC Opal

ELECTRICAL DATA

System Voltage [V]

230V 50Hz

Through-wiring [mm2]

3x2,5

VARIANT SELECTION

Length [mm]
Lumen LED (tc=25)
Art. No. Length [mm]Lumen LED (tc=25)
Energy label

Areto Kitchen

Art. No. 101331-01-3

Length [mm]:

550.0

Lumen LED (tc=25):

900

101331-01-3

550.0

900

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Impact Protection

IK09

Color

White

Length [mm]

550

Width [mm]

68

Height [mm]

51

Weight [kg]

0.66

Housing Material

Aluminium 6063

Lifetime [h]

50 000

Operating Temperature [°C]

-10 - 40

LIGHT TECHNICAL

Lumen out [lm]

780/833

Lumen LED (tc=25)

900

Beam angle [°]

120°

CCT (Color Temperature) [K]

3000-4000K

CRI/Ra

80

Color Code

830

MacAdam [SDCM]

3

Lens (Diffuser)

PC Opal

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

8

Max. Load pr. circuit - B10

76

Max. Load pr. circuit - B16

122

Max. Load pr. circuit - C10

120

Max. Load pr. circuit - C16

193

Leakage current [mA]

0.7

Inrush current Imax [A]

3.3

Inrush current time [µs]

242

Through-wiring [mm2]

3x2,5

Voltage forward, Min. [V]

33

Voltage forward, Max. [V]

38

MOUNTING / CONNECTION

Connection

QuickConnect

Areto Kitchen

Art. No. 101332-01-3

Length [mm]:

752.0

Lumen LED (tc=25):

1350

101332-01-3

752.0

1350

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Impact Protection

IK09

Color

White

Length [mm]

752

Width [mm]

68

Height [mm]

51

Weight [kg]

0.82

Housing Material

Aluminium 6063

Lifetime [h]

50 000

Operating Temperature [°C]

-10 - 40

LIGHT TECHNICAL

Lumen out [lm]

1151/1231

Lumen LED (tc=25)

1350

Beam angle [°]

120°

CCT (Color Temperature) [K]

3000-4000K

CRI/Ra

80

Color Code

830

MacAdam [SDCM]

3

Lens (Diffuser)

PC Opal

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

11

Max. Load pr. circuit - B10

76

Max. Load pr. circuit - B16

122

Max. Load pr. circuit - C10

120

Max. Load pr. circuit - C16

193

Leakage current [mA]

0.7

Inrush current Imax [A]

3.3

Inrush current time [µs]

242

Through-wiring [mm2]

3x2,5

Voltage forward, Min. [V]

35

Voltage forward, Max. [V]

40

MOUNTING / CONNECTION

Connection

QuickConnect
