Duna

Read more

Show variants
Category:
CE markedIP66Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

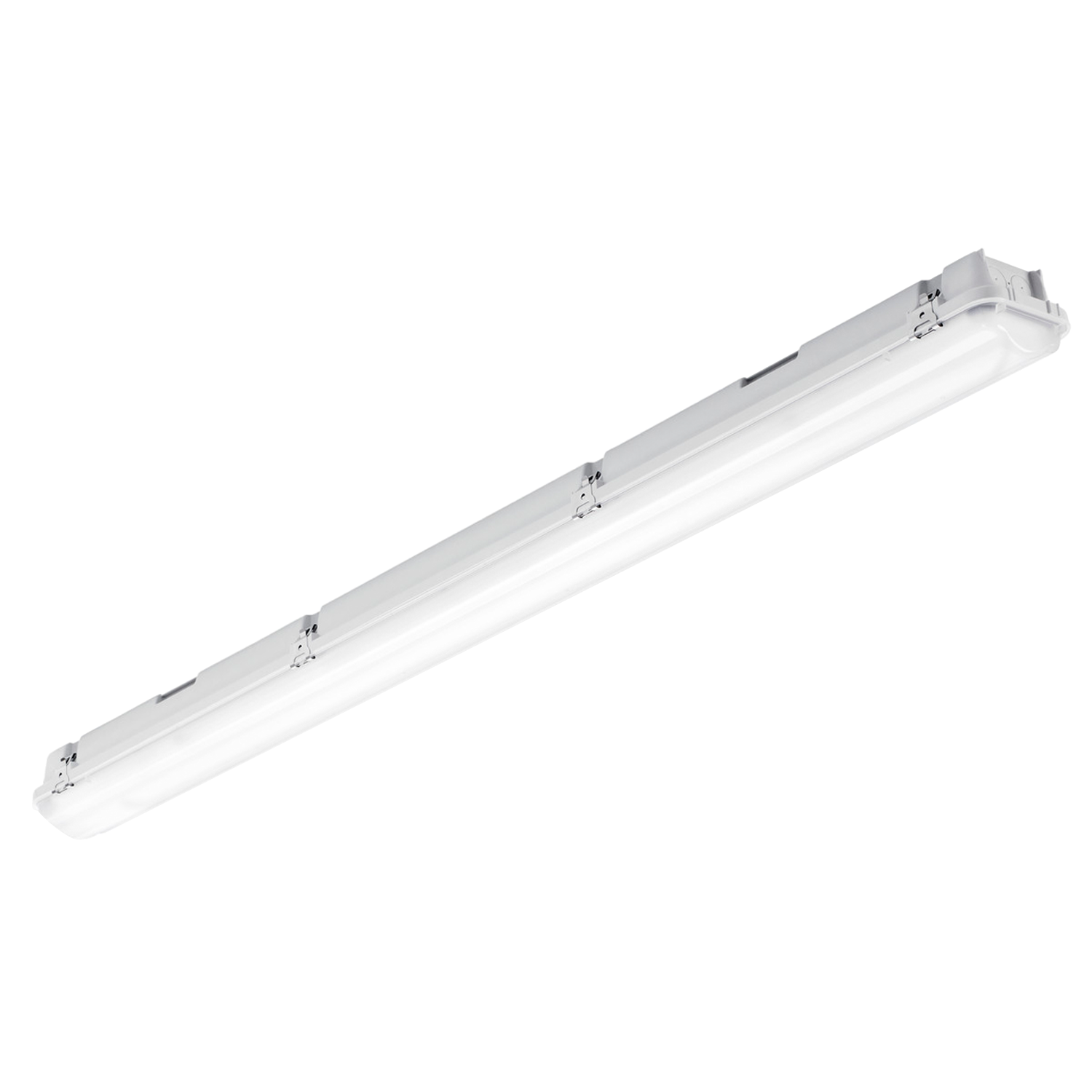

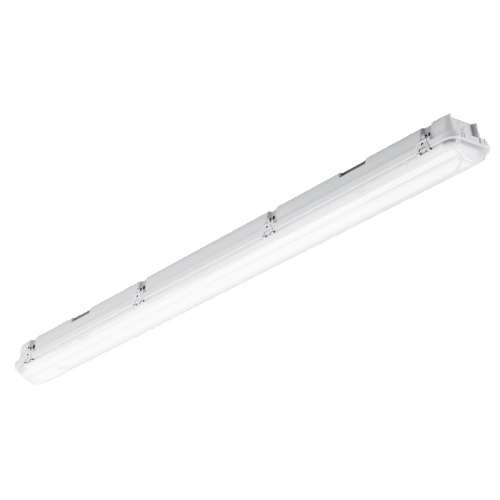

Duna is a sealed industrial light fixture for ceiling surface mounting, indoor or outdoor under a roof. Duna may have 5×2,5mm2 PG through-wiring.
Opal PC (IK08) or PMMA (IK03) diffusor. Ask for Chemical agents list to check material resistance.
Available models can be delivered with master (sensor), slave, DALI or emergency.

Mounting

Documents

Family data sheet Revit (.zip) All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP66

Color

Grey

Lifetime [h]

L80B10: 100 000

Operating Temperature [°C]

-25 - 35

LIGHT TECHNICAL

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

Lightsource type

LED (built in)

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

MOUNTING / CONNECTION

Connection

Terminal

Mounting

Surface, Wall, Ceiling

VARIANT SELECTION

Effect [W]
CCT [K]
CRI [>]
Light Control
Color
Lens Difuser
Length [mm]
Dimming
Art. No. Effect [W]Lumen LED (Tc=25)CCT [K]CRI [>]Beam Angle°Light ControlColorLens DifuserLength [mm]Dimming
Energy label

Duna

Art. No. 10184745

Effect [W]:

46

CCT [K]:

4000

CRI [>]:

80

Light Control:

Terminal

Color:

Grey

Lens Difuser:

PC Opal

Length [mm]:

1573.0

Dimming:

Sensor (MW)

10184745

46

4000

80

Terminal

Grey

PC Opal

1573.0

Sensor (MW)

Duna is a sealed industrial light fixture for ceiling surface mounting, indoor or outdoor under a roof. Duna is classified in accordance with IP66 / IK08. The light fixture is made from robust fiberglass and is equipped with a semi-opal PC diffuser.
5×2,5mm2 through-wiring with PG-nipple.

Has built in microwave/ daylight-sensor (on/off) and can control 5 pcs of 10178295 or 10199057.
Sensitivity range: 1m – 8 m. Hold time: 10 s – 60 min. Light threshold: 2 lux – 2000 lux.

Product

Ingress Protection

IP66

Impact Protection

IK08

Color

Grey

Length [mm]

1573

Width [mm]

84

Height [mm]

101

Weight [kg]

2.2

Housing Material

Polycarbonate

Lifetime [h]

50 000

Operating Temperature [°C]

-25 - 35

LIGHT TECHNICAL

Lumen out [lm]

5600

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

PC Opal

ELECTRICAL DATA

Dimming

Sensor (MW)

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

46

Max. Load pr. circuit - B10

15

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

25

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

36

Inrush current time [µs]

150

Through-wiring [mm2]

5x2,5

MOUNTING / CONNECTION

Connection

Terminal

Mounting

Surface, Wall, Ceiling

Duna

Art. No. 10199058

Effect [W]:

47

CCT [K]:

4000

CRI [>]:

80

Light Control:

Terminal

Color:

Grey

Lens Difuser:

PMMA Opal

Length [mm]:

1573.0

Dimming:

None

10199058

47

4000

80

Terminal

Grey

PMMA Opal

1573.0

None

Item status: Stock item

DOCUMENTATION

CE markedIP66IK03: Beskyttelse mot slag tilsvarende 0,2kg fra 140mm høyde.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Duna is a sealed industrial light fixture for ceiling surface mounting, indoor or outdoor under a roof. Duna is classified in accordance with IP66 / IK03. The light fixture is made from robust fiberglass and is equipped with a PMMA diffuser.
5×2,5mm2 PG through-wiring.
Suitable for use in carwash.

Product

Ingress Protection

IP66

Impact Protection

IK03

Color

Grey

Length [mm]

1573

Width [mm]

84

Height [mm]

101

Weight [kg]

2.2

Lifetime [h]

L80B10: 100 000

Operating Temperature [°C]

-25 - 35

LIGHT TECHNICAL

Lumen out [lm]

5800

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

PMMA Opal

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

47

Through-wiring [mm2]

5x2,5

MOUNTING / CONNECTION

Connection

Terminal

Mounting

Surface, Wall, Ceiling

Duna

Art. No. 10199059

Effect [W]:

47

CCT [K]:

4000

CRI [>]:

80

Light Control:

Terminal

Color:

Grey

Lens Difuser:

PC Opal

Length [mm]:

1573.0

Dimming:

DALI

10199059

47

4000

80

Terminal

Grey

PC Opal

1573.0

DALI

DALI certified

Item status: Stock item

DOCUMENTATION

CE markedIP66Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Duna is a sealed industrial light fixture for ceiling surface mounting, indoor or outdoor under a roof. Duna may have 5×2,5mm2 PG through-wiring.
Opal PC (IK08) or PMMA (IK03) diffusor. Ask for Chemical agents list to check material resistance.
Available models can be delivered with master (sensor), slave, DALI or emergency.

Product

Ingress Protection

IP66

Color

Grey

Length [mm]

1573

Width [mm]

84

Height [mm]

101

Weight [kg]

2.2

Housing Material

Polycarbonate

Lifetime [h]

L80B10: 100 000

Operating Temperature [°C]

-25 - 35

LIGHT TECHNICAL

Lumen out [lm]

5800

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

PC Opal

ELECTRICAL DATA

Dimming

DALI

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

47

Max. Load pr. circuit - B16

26

Max. Load pr. circuit - C16

43

Through-wiring [mm2]

5x2,5

MOUNTING / CONNECTION

Connection

Terminal

Mounting

Surface, Wall, Ceiling

Duna

Art. No. 10206336

Effect [W]:

59

CCT [K]:

4000

CRI [>]:

80

Light Control:

Terminal

Color:

Grey

Lens Difuser:

PMMA Opal

Length [mm]:

1573.0

Dimming:

None

10206336

59

4000

80

Terminal

Grey

PMMA Opal

1573.0

None

Duna is a sealed industrial light fixture for ceiling surface mounting, indoor or outdoor under a roof. Duna may have 5×2,5mm2 PG through-wiring.
Opal PC (IK08) or PMMA (IK03) diffusor. Ask for Chemical agents list to check material resistance.
Available models can be delivered with master (sensor), slave, DALI or emergency.

Product

Ingress Protection

IP66

Impact Protection

IK03

Color

Grey

Length [mm]

1573

Width [mm]

101

Height [mm]

84

Weight [kg]

2.2

Lifetime [h]

L80B10: 100 000

Operating Temperature [°C]

-25 - 35

LIGHT TECHNICAL

Lumen out [lm]

10000

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

PMMA Opal

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

System Power [W]

59

Luminous Efficacy [lm/W]

139

Max. Load pr. circuit - B10

7

Max. Load pr. circuit - B16

12

Max. Load pr. circuit - C10

12

Max. Load pr. circuit - C16

20

Inrush current Imax [A]

36

Inrush current time [µs]

150

MOUNTING / CONNECTION

Connection

Terminal

Mounting

Surface, Wall, Ceiling
