SPECIFICATIONS
Product
Ingress Protection
IP66
Impact Protection
IK09
Color
Grey
Width [mm]
350
Height [mm]
225
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
LIGHT TECHNICAL
CCT (Color Temperature) [K]
4000
CRI/Ra
70
Color Code
740
MacAdam [SDCM]
5
Lightsource type
LED (built in)
ELECTRICAL DATA
System Voltage [V]
230V 50Hz
Protection Class
1
MOUNTING / CONNECTION
Mounting
Wall, Mast
VARIANT SELECTION
Effect [W]
CCT [K]
CRI [>]
Beam Angle°
Color
Light Control
Lumen LED (Tc=25)
Art. No.
Effect [W]Socket / Cap-BaseCCT [K]CRI [>]Beam Angle°ColorLens DifuserLight ControlLumen LED (Tc=25)
Energy label
Joule
Art. No. 102010-03-1
Effect [W]:
35/26/18/11
CCT [K]:
4000
CRI [>]:
70
Beam Angle°:
P3 Assymetric
Color:
Grey
Light Control:
Cable 5m
Lumen LED (Tc=25):
5800
102010-03-1
35/26/18/11
4000
70
P3 Assymetric
Grey
Cable 5m
5800
Item status: Stock item

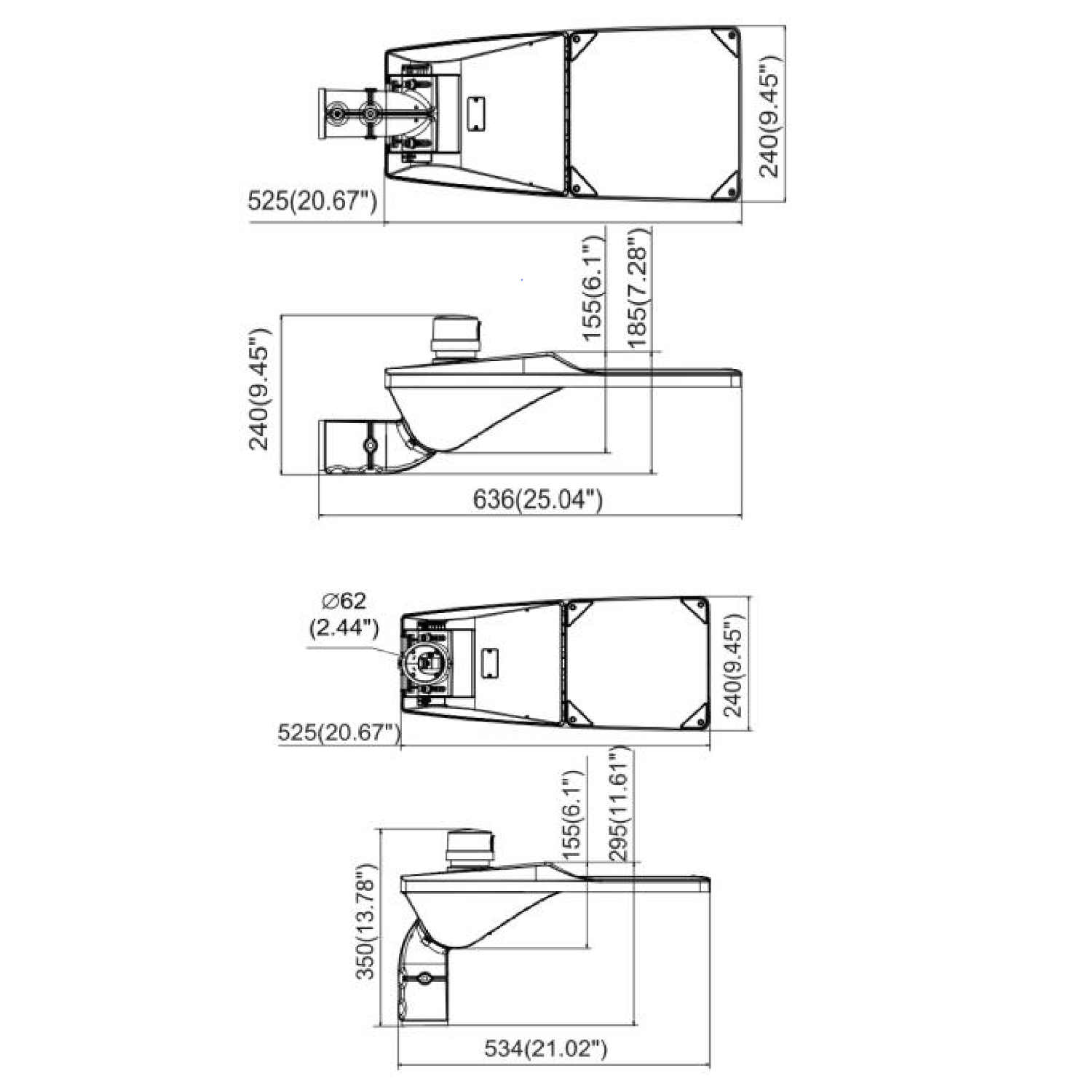

DIMENSIONS
DOCUMENTATION
Product
Ingress Protection
IP66
Impact Protection
IK09
Color
Grey
Length [mm]
615
Width [mm]
350
Height [mm]
225
Weight [kg]
6
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
LIGHT TECHNICAL
Lumen out [lm]
5325
Lumen LED (tc=25)
5800
Beam angle [°]
P3 Assymetric
CCT (Color Temperature) [K]
4000
CRI/Ra
70
Color Code
740
MacAdam [SDCM]
5
Lightsource type
LED (built in)
ELECTRICAL DATA
Dimming
None
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
35/26/18/11
Luminous Efficacy [lm/W]
152
Forward Current LED [mA]
610
Voltage forward, Min. [V]
5.3
Voltage forward, Max. [V]
5.4
MOUNTING / CONNECTION
Connection
Cable 5m
Mounting
Wall, Mast

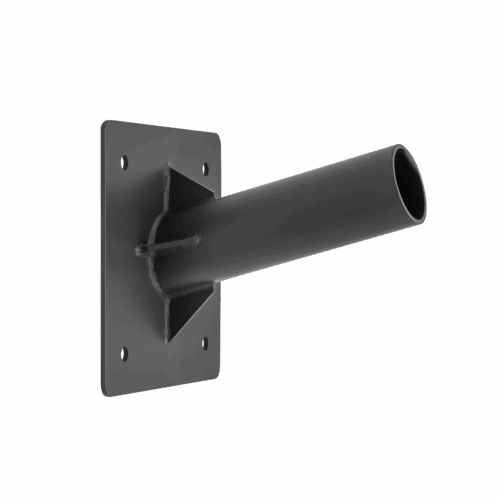

Accessories
Joule
Art. No. 102011-03-1
Effect [W]:
50
CCT [K]:
4000
CRI [>]:
70
Beam Angle°:
P3 Assymetric
Color:
Grey
Light Control:
Cable 5m
Lumen LED (Tc=25):
8500
102011-03-1
50
4000
70
P3 Assymetric
Grey
Cable 5m
8500
Item status: Stock item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Product
Ingress Protection
IP66
Impact Protection
IK09
Color
Grey
Length [mm]
615
Width [mm]
350
Height [mm]
225
Weight [kg]
6
Housing Material
Aluminium
Lifetime [h]
L80B50: 82 000
Operating Temperature [°C]
-30 - 50
LIGHT TECHNICAL
Lumen out [lm]
7825
Lumen LED (tc=25)
8500
Beam angle [°]
P3 Assymetric
CCT (Color Temperature) [K]
4000
CRI/Ra
70
Color Code
740
MacAdam [SDCM]
5
Lightsource type
LED (built in)
ELECTRICAL DATA
Dimming
None
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
50
Luminous Efficacy [lm/W]
156
Max. Load pr. circuit - B10
12
Max. Load pr. circuit - B16
19
Max. Load pr. circuit - C10
20
Max. Load pr. circuit - C16
32
Leakage current [mA]
0.75
Inrush current Imax [A]
85
Inrush current time [µs]
80
Forward Current LED [mA]
48
Voltage forward, Min. [V]
5.24
Voltage forward, Max. [V]
5.3
MOUNTING / CONNECTION
Connection
Cable 5m
Mounting
Wall, Mast
Accessories
Joule
Art. No. 102012-03-1
Effect [W]:
70
CCT [K]:
4000
CRI [>]:
70
Beam Angle°:
P3 Assymetric
Color:
Grey
Light Control:
Cable 5m
Lumen LED (Tc=25):
12000
102012-03-1
70
4000
70
P3 Assymetric
Grey
Cable 5m
12000
Item status: Stock item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Product
Ingress Protection
IP66
Impact Protection
IK09
Color
Grey
Length [mm]
615
Width [mm]
350
Height [mm]
225
Weight [kg]
6
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
LIGHT TECHNICAL
Lumen out [lm]
10920
Lumen LED (tc=25)
12000
Beam angle [°]
P3 Assymetric
CCT (Color Temperature) [K]
4000
CRI/Ra
70
Color Code
740
MacAdam [SDCM]
5
Lightsource type
LED (built in)
ELECTRICAL DATA
Dimming
None
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
70
Luminous Efficacy [lm/W]
156
Max. Load pr. circuit - B10
3
Max. Load pr. circuit - B16
6
Max. Load pr. circuit - C10
9
Max. Load pr. circuit - C16
15
Leakage current [mA]
0.7
Inrush current Imax [A]
54
Inrush current time [µs]
180
Forward Current LED [mA]
60
Voltage forward, Min. [V]
5.34
Voltage forward, Max. [V]
5.4
MOUNTING / CONNECTION
Connection
Cable 5m
Mounting
Wall, Mast
Accessories
Joule
Art. No. 102013-03-1
Effect [W]:
90
CCT [K]:
4000
CRI [>]:
70
Beam Angle°:
P3 Assymetric
Color:
Grey
Light Control:
Cable 8m
Lumen LED (Tc=25):
15000
102013-03-1
90
4000
70
P3 Assymetric
Grey
Cable 8m
15000
Item status: Stock item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Product
Ingress Protection
IP66
Impact Protection
IK09
Color
Grey
Length [mm]
680
Width [mm]
350
Height [mm]
225
Weight [kg]
7.1
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
LIGHT TECHNICAL
Lumen out [lm]
13840
Lumen LED (tc=25)
15000
Beam angle [°]
P3 Assymetric
CCT (Color Temperature) [K]
4000
CRI/Ra
70
Color Code
740
MacAdam [SDCM]
5
Lightsource type
LED (built in)
ELECTRICAL DATA
Dimming
None
System Voltage [V]
230V 50Hz
Protection Class
1
System Power [W]
90
Luminous Efficacy [lm/W]
153
Max. Load pr. circuit - B10
1
Max. Load pr. circuit - B16
3
Max. Load pr. circuit - C10
5
Max. Load pr. circuit - C16
8
Leakage current [mA]
0.7
Inrush current Imax [A]
50
Inrush current time [µs]
220
Forward Current LED [mA]
71
Voltage forward, Min. [V]
5.4
Voltage forward, Max. [V]
5.45
MOUNTING / CONNECTION
Connection
Cable 8m
Mounting
Wall, Mast
