SPECIFICATIONS
Product
Ingress Protection
IP66
Impact Protection
IK10
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
LIGHT TECHNICAL
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
ELECTRICAL DATA
System Voltage [V]
230V 50Hz
Protection Class
1
Socket / Cap-Base
N/A
MOUNTING / CONNECTION
Mounting
Suspended, Ceiling
VARIANT SELECTION
Effect [W]
Socket / Cap-Base
CCT [K]
CRI [>]
Beam Angle°
Color
Lens Difuser
Lumen LED (Tc=25)
Art. No.
Effect [W]Socket / Cap-BaseCCT [K]CRI [>]Beam Angle°ColorLens DifuserLight ControlLumen LED (Tc=25)
Energy label
Sport-X
Art. No. 102482-09-2-ddd
Effect [W]:
150
Socket / Cap-Base:
N/A
CCT [K]:
4000
CRI [>]:
80
Beam Angle°:
85°
Color:
Black
Lens Difuser:
Clear
102482-09-2-ddd
150
N/A
4000
80
85°
Black
Clear
Product
Ingress Protection
IP66
Impact Protection
IK10
Color
Black
Length [mm]
340
Width [mm]
62
Height [mm]
350
Weight [kg]
4.1
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
LIGHT TECHNICAL
Lumen out [lm]
21950
Beam angle [°]
85°
CCT (Color Temperature) [K]
4000
CRI/Ra
80
MacAdam [SDCM]
3
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
ELECTRICAL DATA
Dimming
DALI2
System Voltage [V]
230V 50Hz
Protection Class
1
Socket / Cap-Base
N/A
System Power [W]
150
Luminous Efficacy [lm/W]
146
Max. Load pr. circuit - B10
5
Max. Load pr. circuit - B16
8
Max. Load pr. circuit - C10
8
Max. Load pr. circuit - C16
13
MOUNTING / CONNECTION
Mounting
Suspended, Ceiling

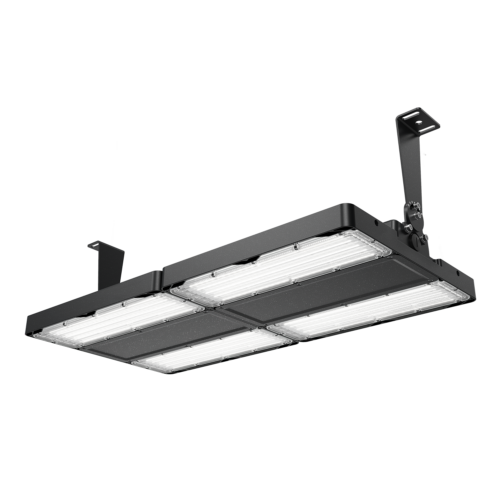

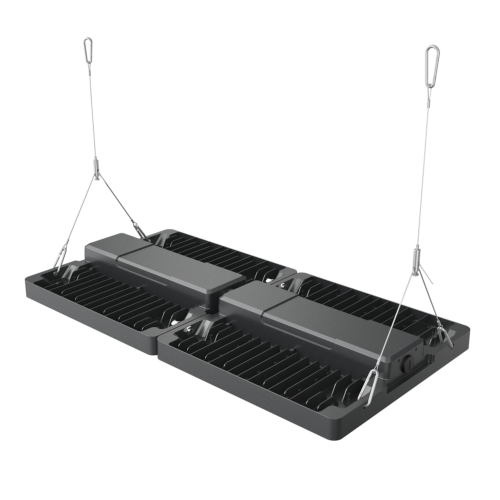

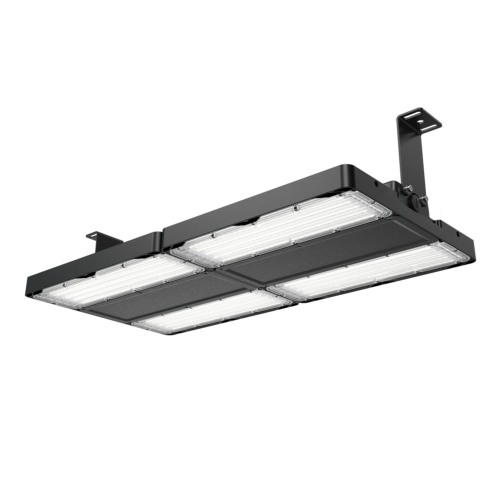

Sport-X
Art. No. 102484-08-2-ddd
Effect [W]:
240
Socket / Cap-Base:
N/A
CCT [K]:
4000
CRI [>]:
80
Beam Angle°:
55°
Color:
Black
Lens Difuser:
Clear
Lumen LED (Tc=25):
38400
102484-08-2-ddd
240
N/A
4000
80
55°
Black
Clear
38400
Product
Ingress Protection
IP66
Impact Protection
IK10
Color
Black
Length [mm]
680
Width [mm]
350
Height [mm]
62
Weight [kg]
7.9
Housing Material
Aluminium
Lifetime [h]
L80B10: 100 000
Operating Temperature [°C]
-30 - 50
LIGHT TECHNICAL
Lumen out [lm]
36450
Lumen LED (tc=25)
38400
Beam angle [°]
55°
CCT (Color Temperature) [K]
4000
CRI/Ra
80
Color Code
840
MacAdam [SDCM]
3
Lightsource type
LED (built in)
Lens (Diffuser)
Clear
ELECTRICAL DATA
Dimming
DALI2
System Voltage [V]
230V 50Hz
Protection Class
1
Socket / Cap-Base
N/A
System Power [W]
240
Luminous Efficacy [lm/W]
151
Max. Load pr. circuit - B10
2
Max. Load pr. circuit - B16
4
Max. Load pr. circuit - C10
4
Max. Load pr. circuit - C16
7
MOUNTING / CONNECTION
Mounting
Suspended, Ceiling
