Cold 3

  • Exclusive downlight
  • Rectangular
  • 2700K or 3000K
Read more

Show variants
CE markedIP20: Indoor use.Insulation class 3Areas of use: Indoor

Product info

DESCRIPTION

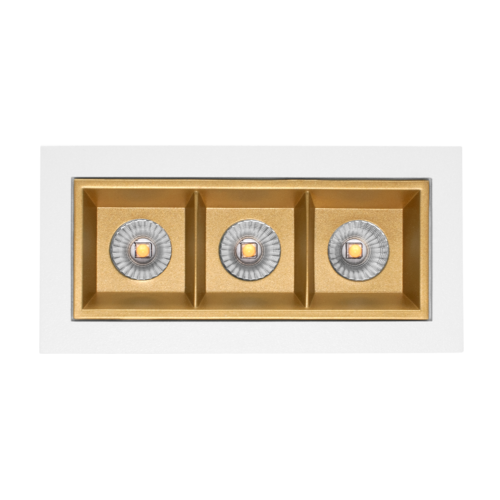

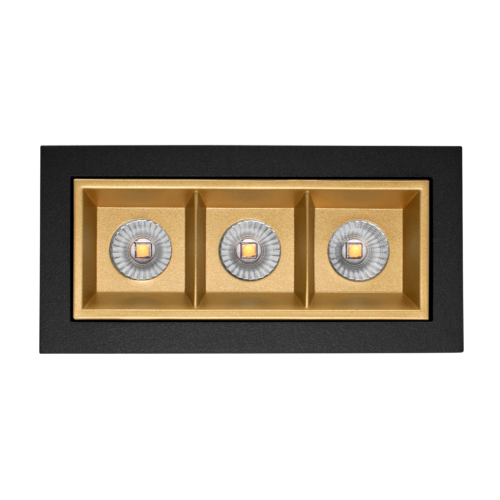

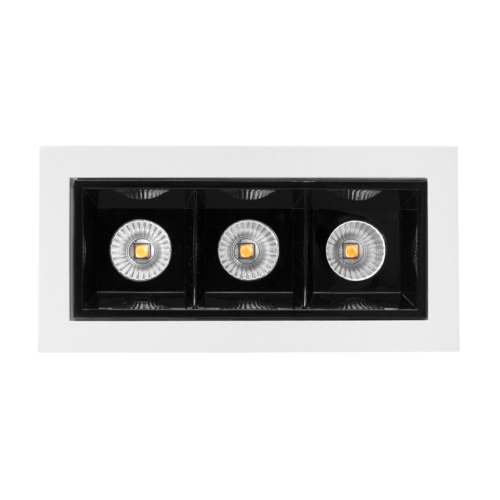

With its rectangular and recessed light source, Cold downlight has a unique design that is suitable for most rooms. Front ring is available in several different colors and can easily be replaced.

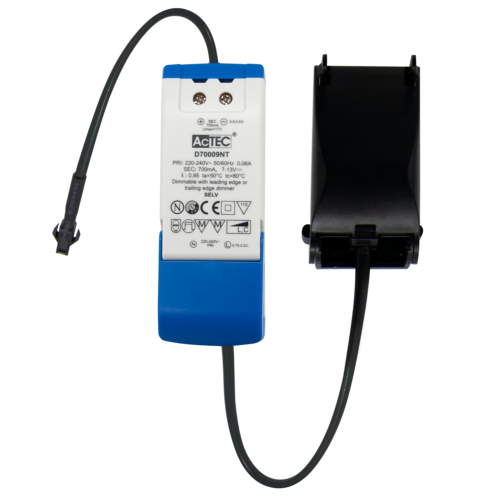

Driver is not included. Please see accessories for recommended driver and alternative colors for front ring.

Mounting

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Length [mm]

90

Width [mm]

44

Height [mm]

52

Weight [kg]

0.16

Lifetime [h]

L80B10: 50 000

LIGHT TECHNICAL

Lumen out [lm]

500

CCT (Color Temperature) [K]

3000

CRI/Ra

90

MacAdam [SDCM]

2

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

Max. power, lightsource [W]

6,3

System Power [W]

6

Forward Current LED [mA]

700

Voltage forward, Max. [V]

9

MOUNTING / CONNECTION

Connection

Depending on driver

Cut-out [mm]

83x36

Mounting

Recessed, Ceiling

VARIANT SELECTION

Effect [W]
Lumen LED (Tc=25)
CCT [K]
CRI [>]
Beam Angle°
Color
Lens Difuser
Light Control
Art. No. Effect [W]Lumen LED (Tc=25)CCT [K]CRI [>]Beam Angle°ColorLens DifuserLight Control
Energy label

Cold 3

Art. No. 1106-30-2

Effect [W]:

6

Lumen LED (Tc=25):

700

CCT [K]:

3000

CRI [>]:

90

Beam Angle°:

30°

Color:

Black

Lens Difuser:

None

Light Control:

Depending on driver

1106-30-2

6

700

3000

90

30°

Black

None

Depending on driver

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 3Areas of use: Indoor

Cold 3 black are delivered with black front ring. See accessories for optional front rings that can be bought separately, and correct choice of driver.

Product

Ingress Protection

IP20

Color

Black

Length [mm]

90

Width [mm]

44

Height [mm]

52

Weight [kg]

0.16

Lifetime [h]

L80B10: 50 000

LIGHT TECHNICAL

Lumen out [lm]

500

Lumen LED (tc=25)

700

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

2

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

Max. power, lightsource [W]

6,3

System Power [W]

6

Forward Current LED [mA]

700

Voltage forward, Max. [V]

9

MOUNTING / CONNECTION

Connection

Depending on driver

Cut-out [mm]

83x36

Mounting

Recessed, Ceiling

Accessories

Cold 3

Art. No. 1106-30-3

Effect [W]:

6

Lumen LED (Tc=25):

700

CCT [K]:

3000

CRI [>]:

90

Beam Angle°:

30°

Color:

White

Lens Difuser:

None

Light Control:

Depending on driver

1106-30-3

6

700

3000

90

30°

White

None

Depending on driver

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 3Areas of use: Indoor

Cold 3 white are delivered with white front ring. See accessories for optional front rings that can be bought separately, and correct choice of driver.

Product

Ingress Protection

IP20

Color

White

Length [mm]

90

Width [mm]

44

Height [mm]

52

Weight [kg]

0.16

Lifetime [h]

L80B10: 50 000

LIGHT TECHNICAL

Lumen out [lm]

500

Lumen LED (tc=25)

700

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

2

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

Max. power, lightsource [W]

6,3

System Power [W]

6

Forward Current LED [mA]

700

Voltage forward, Max. [V]

9

MOUNTING / CONNECTION

Connection

Depending on driver

Cut-out [mm]

83x36

Mounting

Recessed, Ceiling

Accessories

Cold 3

Art. No. 1116-30-2

Effect [W]:

6

Lumen LED (Tc=25):

650

CCT [K]:

2700

CRI [>]:

90

Beam Angle°:

30°

Color:

Black

Lens Difuser:

None

Light Control:

Depending on driver

1116-30-2

6

650

2700

90

30°

Black

None

Depending on driver

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 3Areas of use: Indoor

Cold 3 black are delivered with black front ring. See accessories for optional front rings that can be bought separately, and correct choice of driver.

Product

Ingress Protection

IP20

Color

Black

Length [mm]

90

Width [mm]

44

Height [mm]

52

Weight [kg]

0.16

Lifetime [h]

L80B10: 50 000

LIGHT TECHNICAL

Lumen out [lm]

500

Lumen LED (tc=25)

650

Beam angle [°]

30°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

MacAdam [SDCM]

2

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

Max. power, lightsource [W]

6,3

System Power [W]

6

Forward Current LED [mA]

700

Voltage forward, Max. [V]

9

MOUNTING / CONNECTION

Connection

Depending on driver

Cut-out [mm]

83x36

Mounting

Recessed, Ceiling

Accessories

Cold 3

Art. No. 1116-30-3

Effect [W]:

6

Lumen LED (Tc=25):

650

CCT [K]:

2700

CRI [>]:

90

Beam Angle°:

30°

Color:

White

Lens Difuser:

None

Light Control:

Depending on driver

1116-30-3

6

650

2700

90

30°

White

None

Depending on driver

Item status: Stock item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 3Areas of use: Indoor

Cold 3 white are delivered with white front ring. See accessories for optional front rings that can be bought separately, and correct choice of driver

Product

Ingress Protection

IP20

Color

White

Length [mm]

90

Width [mm]

44

Height [mm]

52

Weight [kg]

0.16

Lifetime [h]

L80B10: 50 000

LIGHT TECHNICAL

Lumen out [lm]

500

Lumen LED (tc=25)

650

Beam angle [°]

30°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

MacAdam [SDCM]

2

Lightsource type

LED (built in)

Lens (Diffuser)

None

ELECTRICAL DATA

Dimming

Depending on Driver

System Voltage [V]

230V 50Hz

Protection Class

3

Socket / Cap-Base

N/A

Max. power, lightsource [W]

6,3

System Power [W]

6

Forward Current LED [mA]

700

Voltage forward, Max. [V]

9

MOUNTING / CONNECTION

Connection

Depending on driver

Cut-out [mm]

83x36

Mounting

Recessed, Ceiling

Accessories
