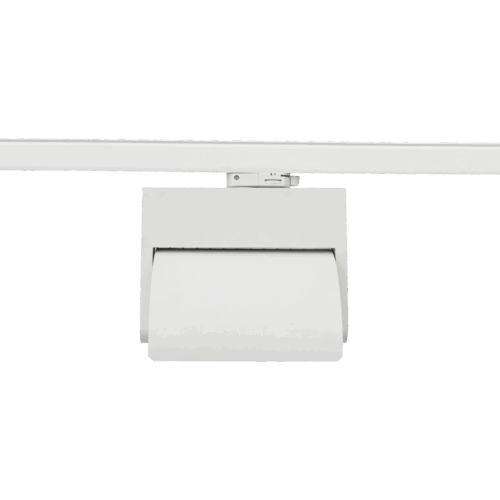

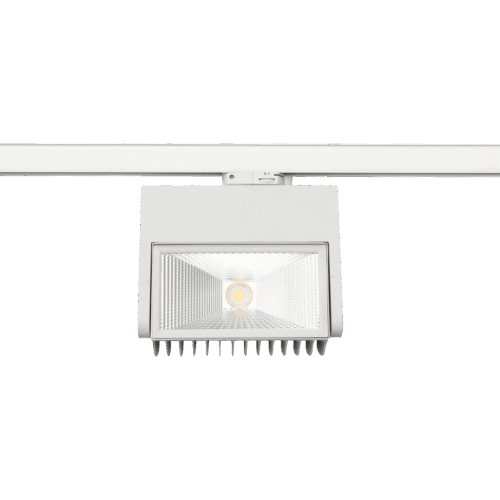

Lata Wall II

  • Track mounted fixture
  • Illuminates large surfaces

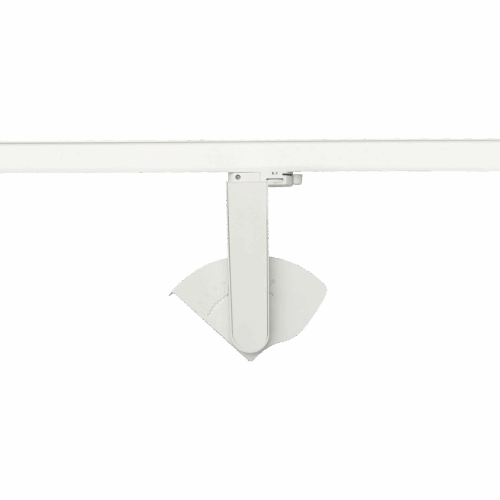

  • 90° tilt and rotatable 355°
Read more

Show variants
CE markedIP20: Indoor use.IK02: Beskyttelse mot slag tilsvarende 0,25kg fra 80mm høyde.Insulation class 1: Shall be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

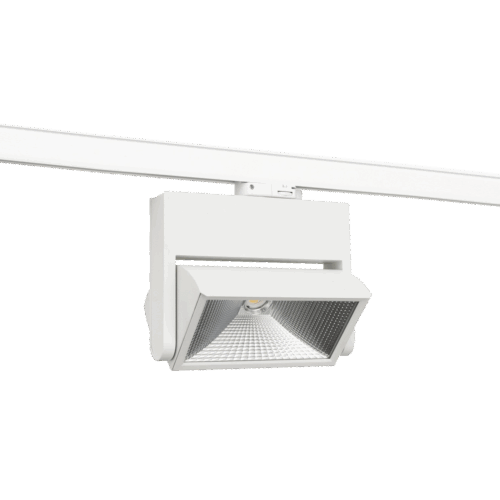

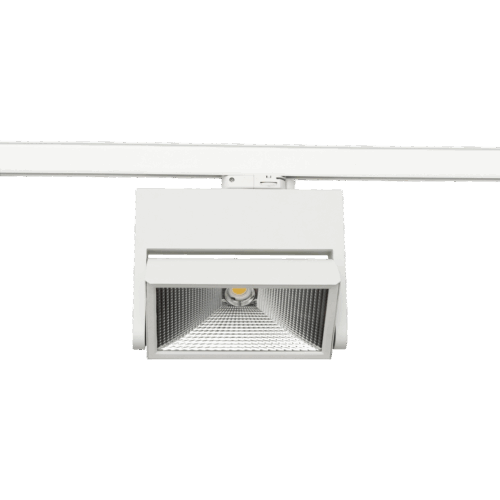

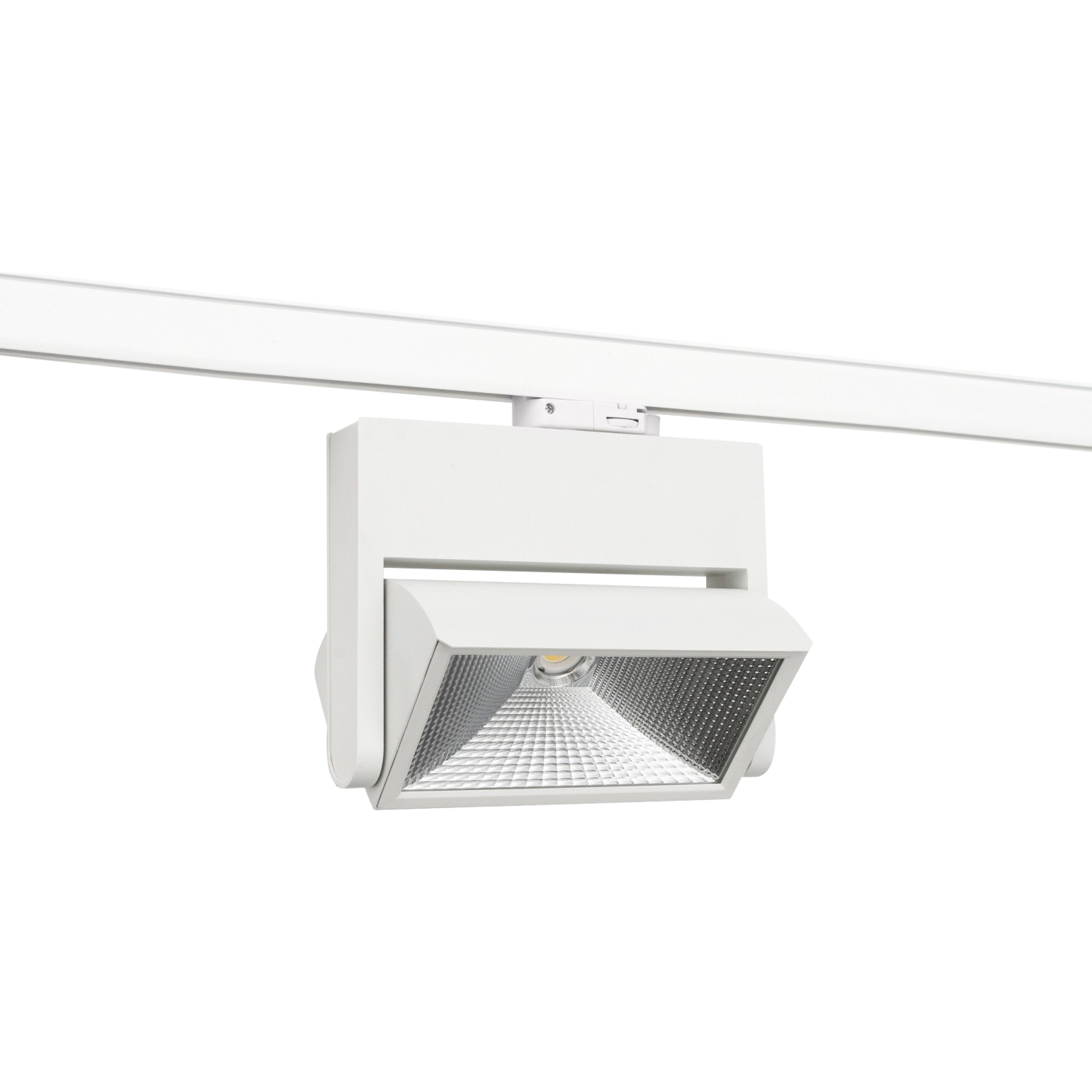

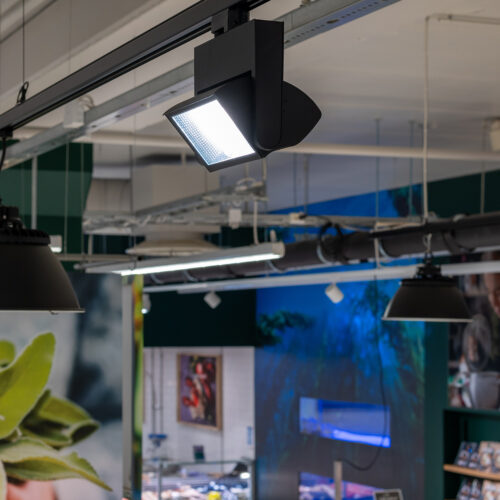

Lata Wall II by Norlux is a linear track mounted luminaire with a reflector ensuring a wide spreading of the light, illuminating large surfaces. Lata Wall II is made from molded aluminum to ensure maximum lifetime expectancy. Lata Wall II has great flexibility, tillable 90° and rotatable 355°.

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Impact Protection

IK02

Length [mm]

226

Width [mm]

107

Height [mm]

248

Weight [kg]

2.6

Lifetime [h]

L80B50: 50 000

Operating Temperature [°C]

0 - 35

LIGHT TECHNICAL

Lens (Diffuser)

Clear

ELECTRICAL DATA

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

Max. Load pr. circuit - B10

31

Max. Load pr. circuit - C16

85

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

VARIANT SELECTION

Effect [W]
CRI [>]
CCT [K]
Light Control
Beam Angle°
Color
Lens Difuser
Lumen LED (Tc=25)
Art. No. Effect [W]CRI [>]CCT [K]Light ControlBeam Angle°ColorLens DifuserLumen LED (Tc=25)
Energy label

Lata Wall II

Art. No. 01103-00-3

Effect [W]:

41

CRI [>]:

80

CCT [K]:

4000

Light Control:

Track 3-Circuit

Beam Angle°:

60°

Color:

White

Lens Difuser:

Clear

Lumen LED (Tc=25):

4600

01103-00-3

41

80

4000

Track 3-Circuit

60°

White

Clear

4600

Lata Wall II by Norlux is a linear track mounted luminaire with a reflector ensuring a wide spreading of the light, illuminating large surfaces. Lata Wall II is made from molded aluminum to ensure maximum lifetime expectancy. Lata Wall II has great flexibility, tillable 90° and rotatable 355°.

Product

Ingress Protection

IP20

Impact Protection

IK02

Color

White

Length [mm]

226

Width [mm]

107

Height [mm]

248

Weight [kg]

2.6

Lifetime [h]

L80B50: 50 000

Operating Temperature [°C]

0 - 35

LIGHT TECHNICAL

Lumen out [lm]

4550

Lumen LED (tc=25)

4600

Beam angle [°]

60°

CCT (Color Temperature) [K]

4000

CRI/Ra

80

Color Code

840

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

41

Luminous Efficacy [lm/W]

112

Max. Load pr. circuit - B10

31

Max. Load pr. circuit - C16

85

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Lata Wall II

Art. No. 01113-00-2

Effect [W]:

41

CRI [>]:

80

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

60°

Color:

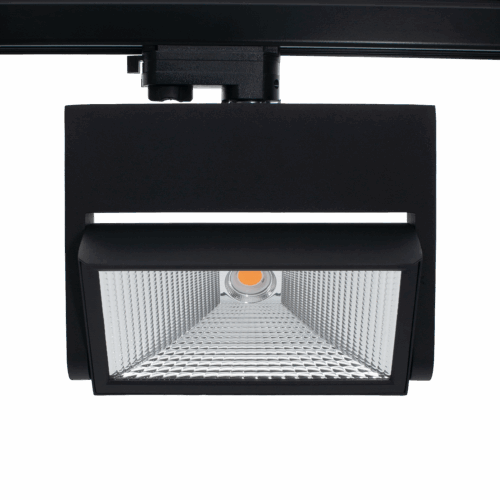

Black

Lens Difuser:

Clear

Lumen LED (Tc=25):

4500

01113-00-2

41

80

3000

Track 3-Circuit

60°

Black

Clear

4500

Lata Wall II by Norlux is a linear track mounted luminaire with a reflector ensuring a wide spreading of the light, illuminating large surfaces. Lata Wall II is made from molded aluminum to ensure maximum lifetime expectancy. Lata Wall II has great flexibility, tillable 90° and rotatable 355°.

Product

Ingress Protection

IP20

Impact Protection

IK02

Color

Black

Length [mm]

226

Width [mm]

107

Height [mm]

248

Weight [kg]

2.6

Lifetime [h]

L80B50: 50 000

Operating Temperature [°C]

0 - 35

LIGHT TECHNICAL

Lumen out [lm]

4450

Lumen LED (tc=25)

4500

Beam angle [°]

60°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

41

Luminous Efficacy [lm/W]

109

Max. Load pr. circuit - B10

31

Max. Load pr. circuit - C16

85

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Lata Wall II

Art. No. 01113-00-2-ddd

Effect [W]:

41

CRI [>]:

80

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

60°

Color:

Black

Lens Difuser:

Clear

Lumen LED (Tc=25):

4500

01113-00-2-ddd

41

80

3000

Track 3-Circuit

60°

Black

Clear

4500

A++

Product data sheet

A++

Product data sheet

DALI2 certified

Item status: Order item

CE markedIP20: Indoor use.IK02: Beskyttelse mot slag tilsvarende 0,25kg fra 80mm høyde.

Lata Wall II by Norlux is a linear track mounted luminaire with a reflector ensuring a wide spreading of the light, illuminating large surfaces. Lata Wall II is made from molded aluminum to ensure maximum lifetime expectancy. Lata Wall II has great flexibility, tillable 90° and rotatable 355°.

Product

Ingress Protection

IP20

Impact Protection

IK02

Color

Black

Length [mm]

226

Width [mm]

107

Height [mm]

248

Weight [kg]

2.6

Lifetime [h]

L80B50: 50 000

Operating Temperature [°C]

0 - 35

LIGHT TECHNICAL

Lumen out [lm]

4450

Lumen LED (tc=25)

4500

Beam angle [°]

60°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

DALI2

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

41

Luminous Efficacy [lm/W]

109

Max. Load pr. circuit - B10

31

Max. Load pr. circuit - C16

85

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling

Lata Wall II

Art. No. 01113-00-3

Effect [W]:

41

CRI [>]:

80

CCT [K]:

3000

Light Control:

Track 3-Circuit

Beam Angle°:

60°

Color:

White

Lens Difuser:

Clear

01113-00-3

41

80

3000

Track 3-Circuit

60°

White

Clear

Lata Wall II by Norlux is a linear track mounted luminaire with a reflector ensuring a wide spreading of the light, illuminating large surfaces. Lata Wall II is made from molded aluminum to ensure maximum lifetime expectancy. Lata Wall II has great flexibility, tillable 90° and rotatable 355°.

Product

Ingress Protection

IP20

Impact Protection

IK02

Color

White

Length [mm]

226

Width [mm]

107

Height [mm]

248

Weight [kg]

2.6

Lifetime [h]

L80B50: 50 000

Operating Temperature [°C]

0 - 35

LIGHT TECHNICAL

Lumen out [lm]

4450

Beam angle [°]

60°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

1

Socket / Cap-Base

N/A

System Power [W]

41

Luminous Efficacy [lm/W]

109

Max. Load pr. circuit - B10

31

Max. Load pr. circuit - C16

85

MOUNTING / CONNECTION

Connection

Track 3-Circuit

Mounting

Track, Ceiling
