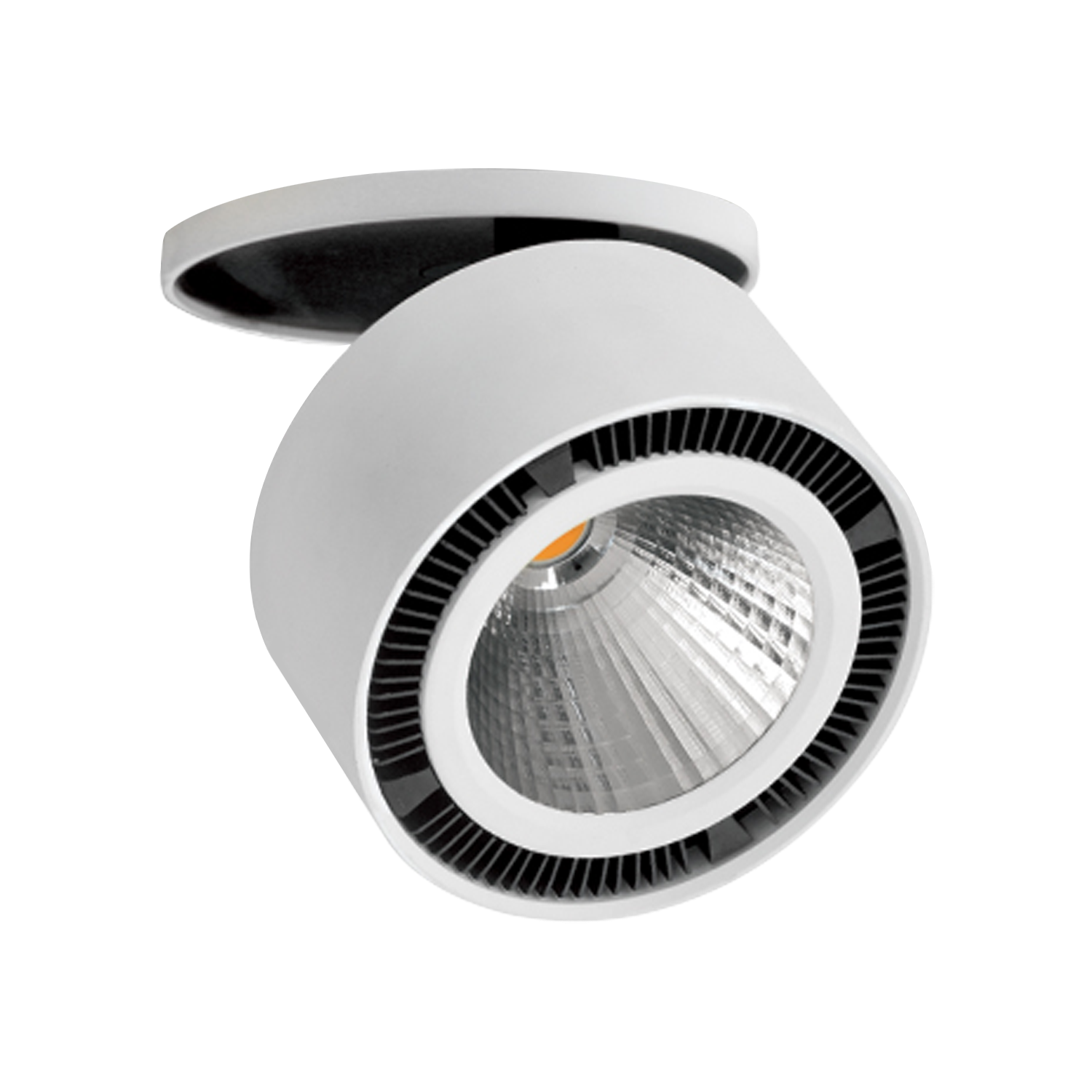

Suri Recessed

  • Innfelt
  • 18i3-kontakt
  • Hvit farge
Read more

CE markedIP20: Indoor use.Insulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

Suri Recessed er den innfelte varianten av Suri, som har vist seg å bli en favoritt blant butikkdesignere, dette takket være en kombinasjon av moderne design og fremragende lysegenskaper. Suri Recessed byr på store justeringsmuligheter og leveres med 18i3-kontakt fra løs driver.

Documents

Family data sheet Dimension All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Length [mm]

125

Width [mm]

125

Height [mm]

75

Weight [kg]

1.15

LIGHT TECHNICAL

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

32

Luminous Efficacy [lm/W]

78

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø115

Mounting

Partial-recessed, Ceiling

VARIANT SELECTION

Effect [W]
Lumen LED (Tc=25)
CCT [K]
CRI [>]
Beam Angle°
Color
Lens Difuser
Light Control
Art. No. Effect [W]Lumen LED (Tc=25)CCT [K]CRI [>]Beam Angle°ColorLens DifuserLight Control
Energy label

Suri Recessed

Art. No. 6566-18-3

Effect [W]:

32

Lumen LED (Tc=25):

3000

CCT [K]:

3000

CRI [>]:

80

Beam Angle°:

18°

Color:

White

Lens Difuser:

Clear

Light Control:

18i3 Quick connection

6566-18-3

32

3000

3000

80

18°

White

Clear

18i3 Quick connection

Item status: Stock item

DOCUMENTATION

CE markedIP20: Indoor use.Insulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Suri Recessed er den innfelte varianten av Suri, som har vist seg å bli en favoritt blant butikkdesignere, dette takket være en kombinasjon av moderne design og fremragende lysegenskaper. Suri Recessed byr på store justeringsmuligheter og leveres med 18i3-kontakt fra løs driver.

Product

Ingress Protection

IP20

Color

White

Length [mm]

125

Width [mm]

125

Height [mm]

75

Weight [kg]

1.15

LIGHT TECHNICAL

Lumen LED (tc=25)

3000

Beam angle [°]

18°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

32

Luminous Efficacy [lm/W]

78

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

700

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø115

Mounting

Partial-recessed, Ceiling
