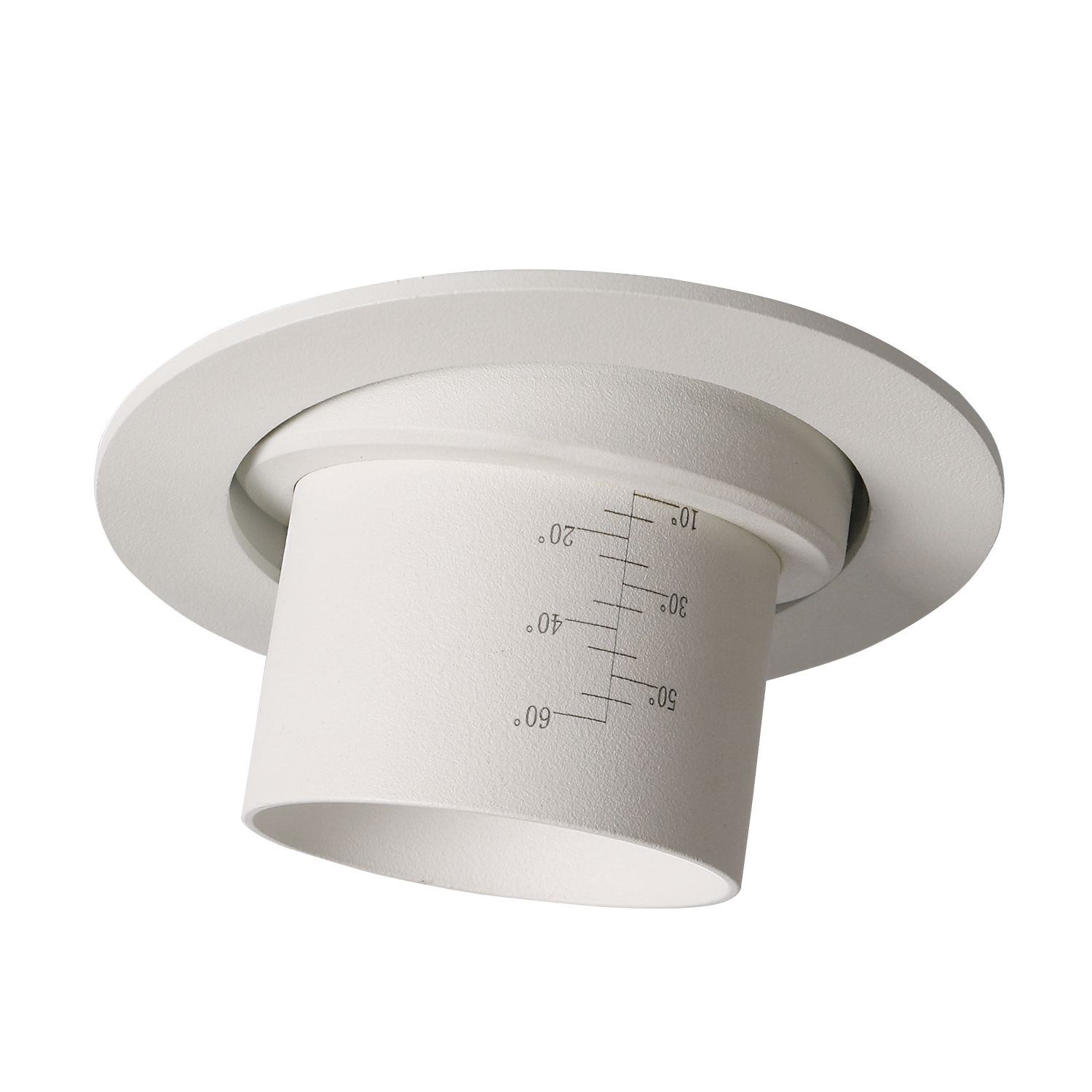

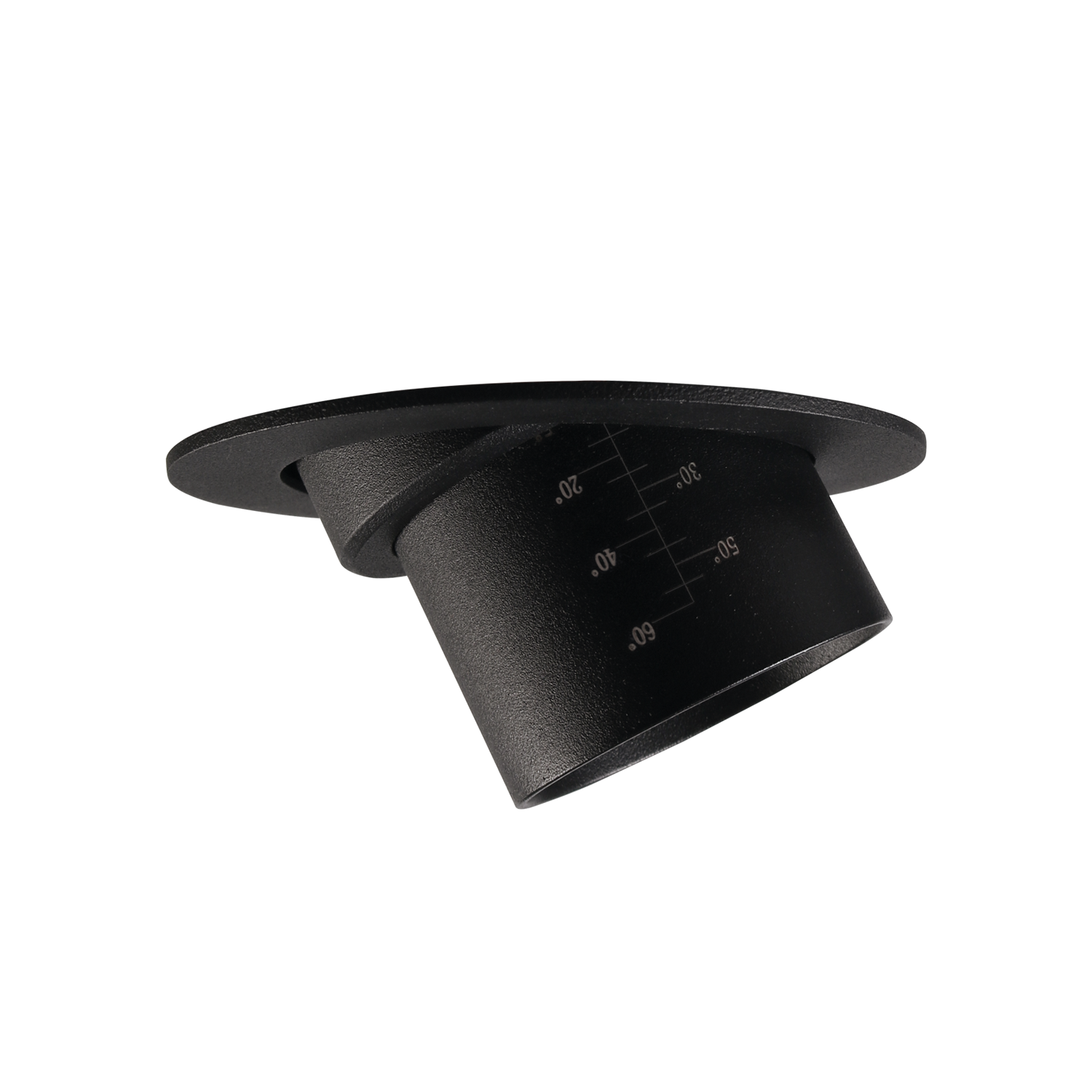

Zoom Recessed COB

  • Zoom Downlight – 5-60 degrees zoom
  • 2700K or 3000K
  • Made of robust die-cast aluminium
Read more

Show variants
CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

Zoom Recessed, is relatively small downlight with a cut-out size of Ø81mm. The unique zoom patent makes it possible to vary the beam angel between 5 – and 60 degrees making this model highly versatile. The Zoom Recessed is available in both 2700 – and 3000 Kelvin and is made from robust die-cast aluminum.

Please see the table for technical details.

Mounting

Documents

Family data sheet All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Width [mm]

60

Height [mm]

96

LIGHT TECHNICAL

Beam angle [°]

5-60°

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

15

Max. Load pr. circuit - B10

50

Max. Load pr. circuit - B16

80

Max. Load pr. circuit - C10

50

Max. Load pr. circuit - C16

80

Inrush current time [µs]

40

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø81

Mounting

Recessed, Partial-recessed

VARIANT SELECTION

Lumen LED (tc=25)
CCT [K]
Color
Art. No. Lumen LED (tc=25)CCT [K]Color
Energy label

Zoom Recessed COB

Art. No. 1013-02-560-2

Lumen LED (tc=25):

1250

CCT [K]:

2700

Color:

Black

1013-02-560-2

1250

2700

Black

Item status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

Black

Width [mm]

60

Height [mm]

96

LIGHT TECHNICAL

Lumen LED (tc=25)

1250

Beam angle [°]

5-60°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

15

Max. Load pr. circuit - B10

140

Max. Load pr. circuit - B16

224

Max. Load pr. circuit - C10

142

Max. Load pr. circuit - C16

228

Inrush current Imax [A]

5

Inrush current time [µs]

100

Voltage forward, Min. [V]

34.2

Voltage forward, Max. [V]

37.7

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø81

Mounting

Recessed, Partial-recessed

Zoom Recessed COB

Art. No. 1013-02-560-3

Lumen LED (tc=25):

1250

CCT [K]:

2700

Color:

White

1013-02-560-3

1250

2700

White

Item status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

White

Width [mm]

60

Height [mm]

96

LIGHT TECHNICAL

Lumen LED (tc=25)

1250

Beam angle [°]

5-60°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

15

Max. Load pr. circuit - B10

140

Max. Load pr. circuit - B16

224

Max. Load pr. circuit - C10

142

Max. Load pr. circuit - C16

228

Inrush current Imax [A]

5

Inrush current time [µs]

100

Voltage forward, Min. [V]

34.2

Voltage forward, Max. [V]

37.7

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø81

Mounting

Recessed, Partial-recessed

Zoom Recessed COB

Art. No. 1013-560-2

Lumen LED (tc=25):

1250

CCT [K]:

2700

Color:

Black

1013-560-2

1250

2700

Black

Item status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Width [mm]

60

Height [mm]

96

LIGHT TECHNICAL

Lumen LED (tc=25)

1250

Beam angle [°]

5-60°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

15

Max. Load pr. circuit - B10

50

Max. Load pr. circuit - B16

80

Max. Load pr. circuit - C10

50

Max. Load pr. circuit - C16

80

Inrush current time [µs]

40

Voltage forward, Min. [V]

34.2

Voltage forward, Max. [V]

37.7

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø81

Mounting

Recessed, Partial-recessed

Zoom Recessed COB

Art. No. 1013-560-3

Lumen LED (tc=25):

1250

CCT [K]:

2700

Color:

White

1013-560-3

1250

2700

White

Item status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Width [mm]

60

Height [mm]

96

LIGHT TECHNICAL

Lumen LED (tc=25)

1250

Beam angle [°]

5-60°

CCT (Color Temperature) [K]

2700

CRI/Ra

90

Color Code

927

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

15

Max. Load pr. circuit - B10

50

Max. Load pr. circuit - B16

80

Max. Load pr. circuit - C10

50

Max. Load pr. circuit - C16

80

Inrush current time [µs]

40

Voltage forward, Min. [V]

34.2

Voltage forward, Max. [V]

37.7

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø81

Mounting

Recessed, Partial-recessed

Zoom Recessed COB

Art. No. 1014-02-560-2

Lumen LED (tc=25):

1300

CCT [K]:

3000

Color:

Black

1014-02-560-2

1300

3000

Black

Item status: Stock item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor use

Product

Ingress Protection

IP20

Color

Black

Width [mm]

60

Height [mm]

96

LIGHT TECHNICAL

Lumen LED (tc=25)

1300

Beam angle [°]

5-60°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

15

Max. Load pr. circuit - B10

35

Max. Load pr. circuit - B16

56

Max. Load pr. circuit - C10

74

Max. Load pr. circuit - C16

118

Inrush current time [µs]

40

Voltage forward, Min. [V]

34.2

Voltage forward, Max. [V]

37.7

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø81

Mounting

Recessed, Partial-recessed

Zoom Recessed COB

Art. No. 1014-560-2

Lumen LED (tc=25):

1300

CCT [K]:

3000

Color:

Black

1014-560-2

1300

3000

Black

Item status: Stock item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Width [mm]

60

Height [mm]

96

LIGHT TECHNICAL

Lumen LED (tc=25)

1300

Beam angle [°]

5-60°

CCT (Color Temperature) [K]

3000

CRI/Ra

90

Color Code

930

MacAdam [SDCM]

3

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

Phase-Cut

System Voltage [V]

230V 50Hz

Protection Class

2

System Power [W]

15

Max. Load pr. circuit - B10

50

Max. Load pr. circuit - B16

80

Max. Load pr. circuit - C10

50

Max. Load pr. circuit - C16

80

Inrush current time [µs]

40

Forward Current LED [mA]

350

Voltage forward, Min. [V]

34.2

Voltage forward, Max. [V]

37.7

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø81

Mounting

Recessed, Partial-recessed
