DESCRIPTION
Ceto Fixed is a downlight of 15W with recessed light source, 36° light distribution and IP44. Ceto Fixed is the natural choice when you want an exclusive look that provides a pleasant and good light.
Supplied with phase-cut driver.
Product info
Assembly
Documentation
Family data sheet
Revit (.zip)
All files (ZIP)
Variant-specific documents are available under details in the overview below.
SPECIFICATIONS
Product
IP rating
IP44
Vandal class
IK02
Height [mm]
90
Diameter [mm]
98
Weight [kg]
0.25
Lifetime [h]
L80B10: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Color Tolerance [SDCM]
3
Optics
Clear
ELECTRICAL DATA
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
ASSEMBLY / CONNECTION
Recess [mm]
Ø92
Assembly
Recessed, Ceiling
OPTIONS
Power [W]
Lumen LED (Tc=25)
Kelvin [K]
CRI [>]
Light spread [°]
Color
Diffuser
Lighting control
Art. No. Power [W] Lumen LED (Tc=25) Kelvin [K] CRI [>] Light distribution [°] Color Diffuser Light control
Energy labeling
Ceto Fixed 1500lm 15W 830 36° BK EPN0024 w/o driver
Art. No. 28830-2-01-36-2
Power [W]:
15
Lumen LED (Tc=25):
1428
Kelvin [K]:
3000
CRI [>]:
80
Light spread [°]:
36
Color:
Black
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
28830-2-01-36-2
15
1428
3000
80
36
Black
Clear
18i3 Quick Coupler
Assortment status: Order item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Ceto Fixed is a downlight of 15W with recessed light source, 36° light distribution and IP44.
Ceto Fixed is the natural choice when you want an exclusive look that provides a pleasant and good light.
Driver not included, see accessories for recommended driver.
Product
IP rating
IP44
Vandal class
IK02
Color
Black
Height [mm]
90
Diameter [mm]
98
Weight [kg]
0.45
Material
Aluminum
Lifetime [h]
L80: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
1500
Lumen LED (tc=25)
1428
Spreading angle [°]
36
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Depending on the driver
Voltage [V]
230V 50Hz
Insulation class
3
Base
NOW
System power [W]
15
Luminous efficacy [lm/W]
100
Strøm LED [mA]
350
Voltage out, min. [V]
32
Voltage out, max. [V]
36
ASSEMBLY / CONNECTION
Connection
18i3 Quick Coupler
Recess [mm]
92mm
Assembly
Recessed
Accessories
Ceto Fixed 1500lm 15W 830 36° WH EPN Phasecut cutout 92mm
Art. No. 28830-2-36-3
Power [W]:
15
Lumen LED (Tc=25):
1428
Kelvin [K]:
3000
CRI [>]:
80
Light spread [°]:
36
Color:
White
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
28830-2-36-3
15
1428
3000
80
36
White
Clear
18i3 Quick Coupler
Assortment status: Order item
DIMENSIONS
DOCUMENTATION
Description
Ceto Fixed is a downlight of 15W with recessed light source, 36° light distribution and IP44. Ceto Fixed is the natural choice when you want an exclusive look that provides a pleasant and good light.
Supplied with phase-cut driver.
Product
IP rating
IP44
Vandal class
IK02
Color
White
Height [mm]
90
Diameter [mm]
98
Weight [kg]
0.625
Material
Aluminum
Lifetime [h]
L80: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
1500
Lumen LED (tc=25)
1428
Spreading angle [°]
36
Color temperature [K]
3000
Color rendering [CRI/Ra]
80
Color code
830
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
15
Luminous efficacy [lm/W]
100
Max. load per course - B10
35
Max. load per course - B16
182
Max. load per course - C10
280
Max. load per course - C16
448
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
100
Strøm LED [mA]
350
Voltage out, min. [V]
32
Voltage out, max. [V]
36
ASSEMBLY / CONNECTION
Connection
18i3 Quick Coupler
Recess [mm]
92mm
Assembly
Recessed
Accessories
Ceto Fixed 900lm 15W TW 827-860 36° BK DALI DT8 cutout 92mm
Art. No. 28830-TW-36-2-ddd
Power [W]:
15
Lumen LED (Tc=25):
1428
Kelvin [K]:
2700K-6000K TW
CRI [>]:
80
Light spread [°]:
36
Color:
Black
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
28830-TW-36-2-ddd
15
1428
2700K-6000K TW
80
36
Black
Clear
18i3 Quick Coupler
Assortment status: Order item
DIMENSIONS
DOCUMENTATION
Description
Ceto Fixed Tunable White is a downlight of 15W with recessed light source, 36° light distribution and IP44. With tunable white you have the option to adjust the color temperature to create the best possible lighting conditions. The color temperature can be adjusted from 6000K to 2700K.
Ceto Fixed is the natural choice when you want an exclusive look that provides a pleasant and good light.
Supplied with DALI DT8 driver.
Product
IP rating
IP44
Vandal class
IK02
Color
Black
Height [mm]
90
Diameter [mm]
98
Weight [kg]
0.604166666666667
Material
Aluminum
Lifetime [h]
L80: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
900
Lumen LED (tc=25)
1428
Spreading angle [°]
36
Color temperature [K]
2700K-6000K TW
Color rendering [CRI/Ra]
80
Color code
827-860
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
DALI DT8
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
15
Luminous efficacy [lm/W]
60
Max. load per course - B10
46
Max. load per course - B16
74
Max. load per course - C10
62
Max. load per course - C16
100
Leakage current [mA]
7
Starting current Imax [A]
15
Starting current time [µs]
100
Strøm LED [mA]
350
Voltage out, min. [V]
32
Voltage out, max. [V]
36
ASSEMBLY / CONNECTION
Connection
18i3 Quick Coupler
Recess [mm]
92mm
Assembly
Recessed
Accessories
Ceto Fixed 900lm 15W TW 827-860 36° WH DALI DT8 cutout 92mm
Art. No. 28830-TW-36-3-ddd
Power [W]:
15
Lumen LED (Tc=25):
1428
Kelvin [K]:
2700K-6000K TW
CRI [>]:
80
Light spread [°]:
36
Color:
White
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
28830-TW-36-3-ddd
15
1428
2700K-6000K TW
80
36
White
Clear
18i3 Quick Coupler
Assortment status: Order item
DIMENSIONS
DOCUMENTATION
Description
Ceto Fixed Tunable White is a downlight of 15W with recessed light source, 36° light distribution and IP44. With tunable white you have the option to adjust the color temperature to create the best possible lighting conditions. The color temperature can be adjusted from 6000K to 2700K.
Ceto Fixed is the natural choice when you want an exclusive look that provides a pleasant and good light.
Supplied with DALI DT8 driver.
Product
IP rating
IP44
Vandal class
IK02
Color
White
Height [mm]
90
Diameter [mm]
98
Weight [kg]
0.604166666666667
Material
Aluminum
Lifetime [h]
L80: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
900
Lumen LED (tc=25)
1428
Spreading angle [°]
36
Color temperature [K]
2700K-6000K TW
Color rendering [CRI/Ra]
80
Color code
827-860
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
DALI DT8
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
15
Luminous efficacy [lm/W]
60
Max. load per course - B10
46
Max. load per course - B16
74
Max. load per course - C10
62
Max. load per course - C16
100
Leakage current [mA]
7
Starting current Imax [A]
15
Starting current time [µs]
100
Strøm LED [mA]
350
Voltage out, min. [V]
32
Voltage out, max. [V]
36
ASSEMBLY / CONNECTION
Connection
18i3 Quick Coupler
Recess [mm]
92mm
Assembly
Recessed
Accessories
Ceto Fixed 1100lm 15W 927 36° BK EPN Phasecut cutout 92mm
Art. No. 28927-2-36-2
Power [W]:
15
Lumen LED (Tc=25):
1428
Kelvin [K]:
2700
CRI [>]:
95
Light spread [°]:
36
Color:
Black
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
28927-2-36-2
15
1428
2700
95
36
Black
Clear
18i3 Quick Coupler
Assortment status: Order item

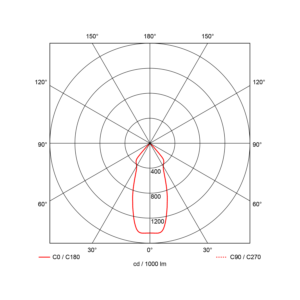

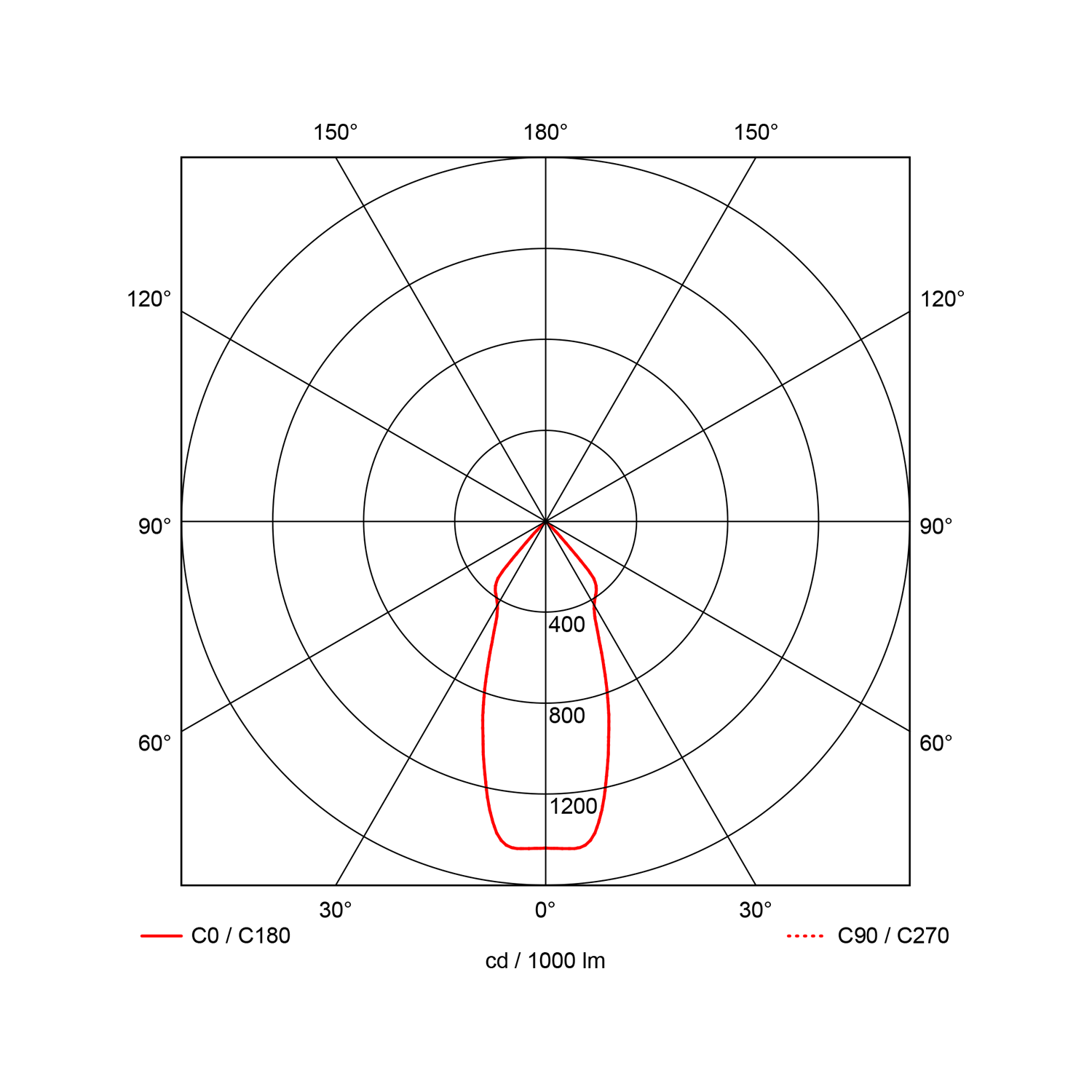

DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Ceto Fixed is a downlight of 15W with recessed light source, 36° light distribution and IP44. Ceto Fixed is the natural choice when you want an exclusive look that provides a pleasant and good light.
Supplied with phase-cut driver.
Product
IP rating
IP44
Vandal class
IK02
Color
Black
Height [mm]
90
Diameter [mm]
98
Weight [kg]
0.625
Material
Aluminum
Lifetime [h]
L80: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
1100
Lumen LED (tc=25)
1428
Spreading angle [°]
36
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
15
Luminous efficacy [lm/W]
73
Max. load per course - B10
35
Max. load per course - B16
182
Max. load per course - C10
280
Max. load per course - C16
448
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
100
Strøm LED [mA]
350
Voltage out, min. [V]
32
Voltage out, max. [V]
36
ASSEMBLY / CONNECTION
Connection
18i3 Quick Coupler
Recess [mm]
92mm
Assembly
Recessed
Accessories
Ceto Fixed 1100lm 15W 927 36° WH EPN Phasecut cutout 92mm
Art. No. 28927-2-36-3
Power [W]:
15
Lumen LED (Tc=25):
1428
Kelvin [K]:
2700
CRI [>]:
95
Light spread [°]:
36
Color:
White
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
28927-2-36-3
15
1428
2700
95
36
White
Clear
18i3 Quick Coupler
Assortment status: Order item
DIMENSIONS AND LIGHT DISTRIBUTION
DOCUMENTATION
Description
Ceto Fixed is a downlight of 15W with recessed light source, 36° light distribution and IP44. Ceto Fixed is the natural choice when you want an exclusive look that provides a pleasant and good light.
Supplied with phase-cut driver.
Product
IP rating
IP44
Vandal class
IK02
Color
White
Height [mm]
90
Diameter [mm]
98
Weight [kg]
0.625
Material
Aluminum
Lifetime [h]
L80: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
1100
Lumen LED (tc=25)
1428
Spreading angle [°]
36
Color temperature [K]
2700
Color rendering [CRI/Ra]
95
Color code
927
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
15
Luminous efficacy [lm/W]
73
Max. load per course - B10
35
Max. load per course - B16
182
Max. load per course - C10
280
Max. load per course - C16
448
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
100
Strøm LED [mA]
350
Voltage out, min. [V]
32
Voltage out, max. [V]
36
ASSEMBLY / CONNECTION
Connection
18i3 Quick Coupler
Recess [mm]
92mm
Assembly
Recessed
Accessories
Ceto Fixed 1100lm 15W 930 36° WH EPN0024 w/o driver
Art. No. 28930-2-01-36-3
Power [W]:
15
Lumen LED (Tc=25):
1428
Kelvin [K]:
3000
CRI [>]:
95
Light spread [°]:
36
Color:
White
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
28930-2-01-36-3
15
1428
3000
95
36
White
Clear
18i3 Quick Coupler
Assortment status: Order item
DIMENSIONS
DOCUMENTATION
Description
Ceto Fixed is a downlight of 15W with recessed light source, 36° light distribution and IP44. Ceto Fixed is the natural choice when you want an exclusive look that provides a pleasant and good light.
Supplied with phase-cut driver.
Product
IP rating
IP44
Vandal class
IK02
Color
White
Height [mm]
90
Diameter [mm]
98
Weight [kg]
0.441666666666667
Material
Aluminum
Lifetime [h]
L80: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
1100
Lumen LED (tc=25)
1428
Spreading angle [°]
36
Color temperature [K]
3000
Color rendering [CRI/Ra]
95
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Depending on the driver
Voltage [V]
230V 50Hz
Insulation class
3
Base
NOW
System power [W]
15
Luminous efficacy [lm/W]
73
Strøm LED [mA]
350
Voltage out, min. [V]
32
Voltage out, max. [V]
36
ASSEMBLY / CONNECTION
Connection
18i3 Quick Coupler
Recess [mm]
92mm
Assembly
Recessed
Accessories
Ceto Fixed 1100lm 15W 930 36° BK EPN Phasecut cutout 92mm
Art. No. 28930-2-36-2
Power [W]:
15
Lumen LED (Tc=25):
1428
Kelvin [K]:
3000
CRI [>]:
95
Light spread [°]:
36
Color:
Black
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
28930-2-36-2
15
1428
3000
95
36
Black
Clear
18i3 Quick Coupler
Description
Ceto Fixed is a downlight of 15W with recessed light source, 36° light distribution and IP44. Ceto Fixed is the natural choice when you want an exclusive look that provides a pleasant and good light.
Supplied with phase-cut driver.
Product
IP rating
IP44
Vandal class
IK02
Color
Black
Height [mm]
90
Diameter [mm]
98
Weight [kg]
0.625
Material
Aluminum
Lifetime [h]
L80: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
1100
Lumen LED (tc=25)
1428
Spreading angle [°]
36
Color temperature [K]
3000
Color rendering [CRI/Ra]
95
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
15
Luminous efficacy [lm/W]
73
Max. load per course - B16
182
Max. load per course - C10
280
Max. load per course - C16
448
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
100
Strøm LED [mA]
350
Voltage out, min. [V]
32
Voltage out, max. [V]
36
ASSEMBLY / CONNECTION
Connection
18i3 Quick Coupler
Recess [mm]
92mm
Assembly
Recessed
Accessories
Ceto Fixed 1100lm 15W 930 36° WH EPN Phasecut cutout 92mm
Art. No. 28930-2-36-3
Power [W]:
15
Lumen LED (Tc=25):
1428
Kelvin [K]:
3000
CRI [>]:
95
Light spread [°]:
36
Color:
White
Diffuser:
Clear
Lighting control:
18i3 Quick Coupler
28930-2-36-3
15
1428
3000
95
36
White
Clear
18i3 Quick Coupler
Description
Ceto Fixed is a downlight of 15W with recessed light source, 36° light distribution and IP44. Ceto Fixed is the natural choice when you want an exclusive look that provides a pleasant and good light.
Supplied with phase-cut driver.
Product
IP rating
IP44
Vandal class
IK02
Color
White
Height [mm]
90
Diameter [mm]
98
Weight [kg]
0.625
Material
Aluminum
Lifetime [h]
L80: 100,000
Operating temperature [°C]
-20 - 45
LIGHTING
Lumen out [lm]
1100
Lumen LED (tc=25)
1428
Spreading angle [°]
36
Color temperature [K]
3000
Color rendering [CRI/Ra]
95
Color code
930
Color Tolerance [SDCM]
3
Light source
LED (built-in)
Optics
Clear
ELECTRICAL DATA
Dimming type
Phase section
Flicker-free
Yes
Voltage [V]
230V 50Hz
Insulation class
2
Base
NOW
System power [W]
15
Luminous efficacy [lm/W]
73
Max. load per course - B16
182
Max. load per course - C10
280
Max. load per course - C16
448
Leakage current [mA]
5
Starting current Imax [A]
5
Starting current time [µs]
100
Strøm LED [mA]
350
Voltage out, min. [V]
32
Voltage out, max. [V]
36
ASSEMBLY / CONNECTION
Connection
18i3 Quick Coupler
Recess [mm]
92mm
Assembly
Recessed
