Trimo

  • Inntrukket lyskilde
  • 18i3 tilkobling
  • Tilgjengelig i sort, hvit eller grå farge
Read more

Show variants
CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product info

DESCRIPTION

Tired of downlights giving obtrusive annoying stray light? Our Trimo range of downlights guarantees a minimum of stray light, this is accomplished by using a recessed LED light source.

The Trimo range has a 18i3 connector and can be supplied with a variety of connector solutions.

Documents

Family data sheet Dimension All files (.ZIP)

Variant-specific documents are available under details in the overview below.

SPECIFICATIONS

Product

Ingress Protection

IP20

Length [mm]

170

Width [mm]

170

Height [mm]

170

Weight [kg]

1.4

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

Socket / Cap-Base

N/A

System Power [W]

31

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

800

MOUNTING / CONNECTION

Cut-out [mm]

Ø155

Mounting

Recessed, Ceiling

VARIANT SELECTION

Beam Angle°
Color
Light Control
Art. No. Beam Angle°ColorLight Control
Energy label

Trimo

Art. No. 18045-7-20-2

Beam Angle°:

20°

Color:

Black

Light Control:

18i3 Quick connection

18045-7-20-2

20°

Black

18i3 Quick connection

Item status: Order item

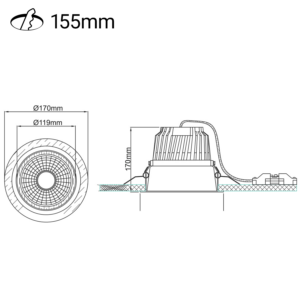

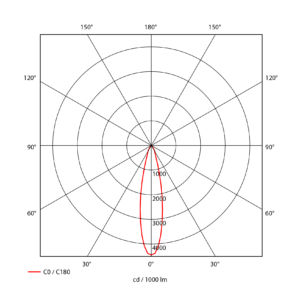

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

170

Width [mm]

170

Height [mm]

170

Weight [kg]

1.4

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3750

Lumen LED (tc=25)

4750

Beam angle [°]

20°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

Socket / Cap-Base

N/A

System Power [W]

31

Luminous Efficacy [lm/W]

121

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

800

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø155

Mounting

Recessed, Ceiling

Trimo

Art. No. 18045-7-20-3

Beam Angle°:

20°

Color:

White

Light Control:

18i3 Quick connection

18045-7-20-3

20°

White

18i3 Quick connection

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

170

Width [mm]

170

Height [mm]

170

Weight [kg]

1.4

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3750

Lumen LED (tc=25)

4750

Beam angle [°]

20°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

Socket / Cap-Base

N/A

System Power [W]

31

Luminous Efficacy [lm/W]

121

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

800

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø155

Mounting

Recessed, Ceiling

Trimo

Art. No. 18045-7-30-2

Beam Angle°:

30°

Color:

Black

Light Control:

18i3 Quick connection

18045-7-30-2

30°

Black

18i3 Quick connection

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

170

Width [mm]

170

Height [mm]

170

Weight [kg]

1.4

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3820

Lumen LED (tc=25)

4750

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

Socket / Cap-Base

N/A

System Power [W]

31

Luminous Efficacy [lm/W]

123

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

800

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø155

Mounting

Recessed, Ceiling

Trimo

Art. No. 18045-7-30-3

Beam Angle°:

30°

Color:

White

Light Control:

18i3 Quick connection

18045-7-30-3

30°

White

18i3 Quick connection

Item status: Order item

DIMENSIONS AND LIGHT DISTRIBUTION

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

170

Width [mm]

170

Height [mm]

170

Weight [kg]

1.4

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3820

Lumen LED (tc=25)

4750

Beam angle [°]

30°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

Socket / Cap-Base

N/A

System Power [W]

31

Luminous Efficacy [lm/W]

123

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

800

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø155

Mounting

Recessed, Ceiling

Trimo

Art. No. 18045-7-60-2

Beam Angle°:

60°

Color:

Black

Light Control:

18i3 Quick connection

18045-7-60-2

60°

Black

18i3 Quick connection

Item status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

Black

Length [mm]

170

Width [mm]

170

Height [mm]

170

Weight [kg]

1.4

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3580

Lumen LED (tc=25)

4750

Beam angle [°]

60°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

Socket / Cap-Base

N/A

System Power [W]

31

Luminous Efficacy [lm/W]

116

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

800

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø155

Mounting

Recessed, Ceiling

Trimo

Art. No. 18045-7-60-3

Beam Angle°:

60°

Color:

White

Light Control:

18i3 Quick connection

18045-7-60-3

60°

White

18i3 Quick connection

Item status: Order item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

170

Width [mm]

170

Height [mm]

170

Weight [kg]

1.4

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3580

Lumen LED (tc=25)

4750

Beam angle [°]

60°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

None

System Voltage [V]

230V 50Hz

Protection Class

2

Socket / Cap-Base

N/A

System Power [W]

31

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

800

MOUNTING / CONNECTION

Connection

18i3 Quick connection

Cut-out [mm]

Ø155

Mounting

Recessed, Ceiling

Trimo

Art. No. 18045-7-60-3-ddd

Beam Angle°:

60°

Color:

White

Light Control:

18i5 DALI Quick connection

18045-7-60-3-ddd

60°

White

18i5 DALI Quick connection

DALI certified

Item status: Stock item

DIMENSIONS

DOCUMENTATION

CE markedIP20: Indoor useInsulation class 2: Double insulated and should not be connected to earth.Areas of use: Indoor

Product

Ingress Protection

IP20

Color

White

Length [mm]

170

Width [mm]

170

Height [mm]

170

Weight [kg]

1.4

Lifetime [h]

L80B10: 60 000

LIGHT TECHNICAL

Lumen out [lm]

3580

Lumen LED (tc=25)

4750

Beam angle [°]

60°

CCT (Color Temperature) [K]

3000

CRI/Ra

80

Color Code

830

Lightsource type

LED (built in)

Lens (Diffuser)

Clear

ELECTRICAL DATA

Dimming

DALI

System Voltage [V]

230V 50Hz

Protection Class

2

Socket / Cap-Base

N/A

System Power [W]

31

Luminous Efficacy [lm/W]

116

Max. Load pr. circuit - B10

14

Max. Load pr. circuit - B16

24

Max. Load pr. circuit - C10

24

Max. Load pr. circuit - C16

40

Inrush current Imax [A]

25

Inrush current time [µs]

150

Forward Current LED [mA]

800

MOUNTING / CONNECTION

Connection

18i5 DALI Quick connection

Cut-out [mm]

Ø155

Mounting

Recessed, Ceiling
